Mud Agitator

Mud Agitator
Solid Control Equipment
DC mud agitator is used for the mixing and agitation of drilling fluid, preventing the settlement of solid phase particles in the tank recycling system.

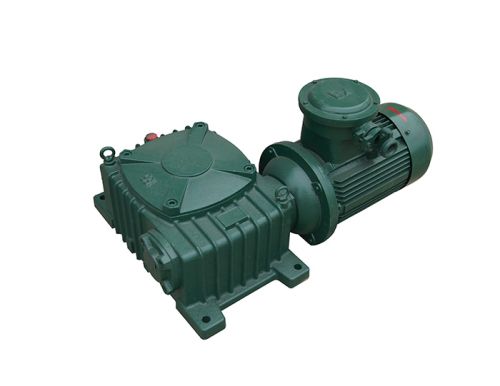

�1� Speed reducer combined with explosion-proof motor , which is easy maintenance and suitable for using in wild harsh working conditions.
�2� Customers can choose single layer or double layers impellers according to site conditions.Agitator shaft centering guide can be added according to the increase of tank depth.
�3� The motor is placed horizontally , convenient for installing ,adjusting and replacing.
�4� Adopt worm wheel and worm gear reducer drive , which have the advantages of large transmitted torque,smooth operation, reliable performance,etc.
�5� Optional ATEX , IEC and marine explosion-proof certified motors according to customers'requirements.
Mud Agitator Parameters
Model DCJBQ5.5 DCJBQ7.5 DCJBQ11 DCJBQ15
Motor Power 5.5kW 7.5kW 11kW 15kW
Impeller Speed 60rpm�50HZ�72rpm�60HZ�
Shaft Length 1500mm or According to tank internal height
Single Impeller Dia. 850mm 950mm 1050mm 1100mm
Double Impeller  Dia.r NA ��800mm��800mm ��850mm��850mm ��900mm��900mm
