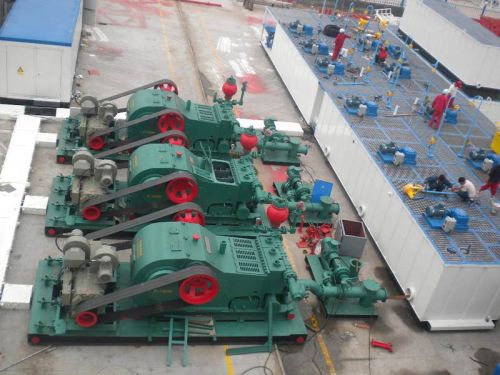

Contact SupplierWe are offering mud pump.
1) triplex single action piston pump
2) input power: 1300hp
3) diameter of suction pipe:12.01 inch
model type rated stroke input power type gear gear ratio diameter of suction pipe
nf-1600 triplex single action piston 120 rmin 1192kw herring bone 4.205:1 12.01 inch
diameter of discharge pipe pinion gear size keys valve ports weight lubrication
4.98”
5000psi 8.50inch 2.00inch×2.00inch valve over valve
api 54630 pound pressure &splash
strokemin horse power
rating liner size (inch)and rated pressure(mpa,psi)
7.09 6.70 6.30 5.91 5.5 5.12
23.6 3345 25.9 3750 29.2 4235 33.2 4820 35.1 5000 34.5 5000
kw hp volume ls (gal.s)
130 1293 1733 50.42 13.32 44.97 11.88 39.83 10.52 35.01 9.25 30.50 8.06 26.30 6.95
120 1193 1600 46.54 12.29 41.51 10.97 36.77 9.71 32.32 8.54 28.15 7.44 24.27 6.41
110 1094 1467 54.66 11.80 38.05 10.05 33.71 8.91 29.62 7.82 25.81 6.82 22.25 5.88
100 994 1333 38.78 10.24 34.59 9.14 30.64 8.10 26.93 7.11 23.46 6.20 20.23 5.34
90 895 1200 34.90 9.22 31.13 8.22 27.58 7.29 24.24 6.40 21.11 5.58 18.21 4.81
1 0.3878 0.102 0.3459 0.091 0.3064 0.081 0.2693 0.071 0.2346 0.062 0.2023 0.053
f1600 drill mud pump.
