Mud Pump

We are offering mud pump.
1. The fluid end assembly mainly consists of fluid end,
valve assembly, liners and pistons. Fluid end is made
of forged alloy steel and three fluid ends of each pump
are interchangeable. The suction valve and discharge
valve of f mud pump are interchangeable. Liners are
hy- chrome liners, the sleeve is made of wear resisting cast iron. Piston and piston rod are of slide fit and sealed with rubber seal rings and are fastened with lock nuts to prevent the piston from loosing.
2.the valve seat bores have bottom shoulders. The piston and liners are spray lubricated and cooled which allow an extended service life.

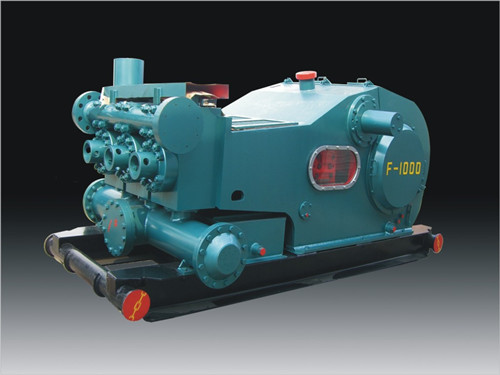

3. F-1000 mud pumps are rated at longer stroke length and relatively low stroke per minute. It can increase the service life of expendable parts of fluid end assembly
the power end assembly mainly consists of frame, crankshaft, pinion shaft, crosshead and extension rod.
F-1000 mud pump specifications
f-800 f-1000
max. Liner size/stroke 6-3/4″(171.45 mm)
9″(228.6mm) 6-3/4″(171.45 mm)
10″(254mm)
nominal hp/rating 800 hp@150 spm 1000 hp@140 spm
type gear herringbone 4.31:1
lubrication pressure and splash to all moving parts
valve pots api 6#
approximate weight 26,603 lbs (12,067 kgs) 33,770 lbs (15,318 kgs)
