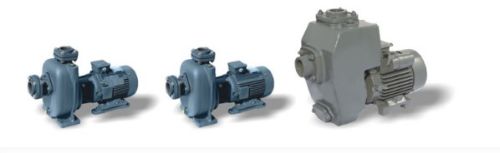

Impeller: Not Specified Mud Pumps

Application for crude oil and mud slurry handling in oil fields and cement slurry water, Oswal Pumps Ltd. has introduced improved design of Mud Pump. The inner curvatures of pump casing have been modified in order to attain the minimum load on the impeller with increase in discharge. Available in single and three phase in 1, 1.5, 2 & 3 HP. With head range from 6 meters to 22 meters and discharge flow 70 lpm – 450 lpm. Delivery size options in 40x40 mm, 50x40 mm and 50x50 mm. It comes with mechanical seal, anti-frictional ball bearing and shaft EN-8. Motor frame size 80 F & 100 F. Method of stating DOL. Class of Insulation - B and degree of protection - IP 44 . On demand thermal protection can be can be made available.
