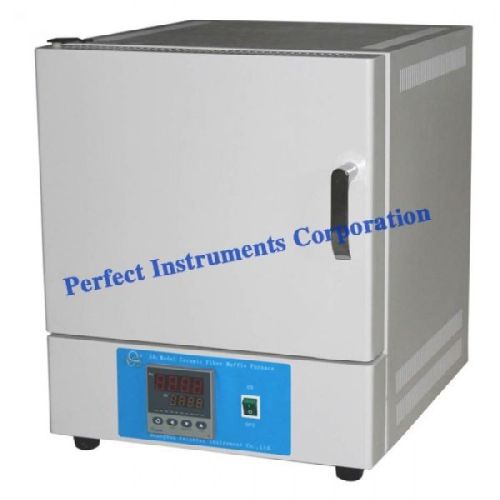

Muffle Furnace, Rated Power (kw) : 1 Kw

DocumentationIQ, OQ & PQ document with controller calibration & Tractability
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Description This Muffle Furnace GMP Model is fabricated as per guideline of GMP. GMP model now is required for all pharma’s companies following GMP....

View More Details

Send Enquiry

Company Information

Perfect Instruments Corporation

Canada Corner, Nashik, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Product Description

This Muffle Furnace GMP Model is fabricated as per guideline of GMP. GMP model now is required for all pharma’s companies following GMP guidelines.

Technical Specifications:

As per GMP Rule outer Body made of S.S.304 of thick plate in dual finnish
Inner of ceramic Muffle
Max Working Temp.1160C
Supplied with PID controller with auto tuning facility with double display to view set & present temp.
Door insulation of HFK briks
Heating element are mafe from kanthal A-1 Wire
A uniform distribution from all 4 sides
A special type of thermocouple fuse to avoid over heating
Power supply 230 Volts 50 H2

Muffle Furnace GMP Model Is Available in Below Sizes:

Inner Dimension	Outer Dimension	Rating K.W.	Power consumer	Net weight
9″x4″x4″	18″x14″x14″	2	9	30 KG
10″X5″X5″	19″X15″X15″	2.5	11	40 KG
12″X6″X6″	21″X17″X17″	3.5	15	55 KG
18″X9″X9″	28″X20″X20″	6	26	80 KG
