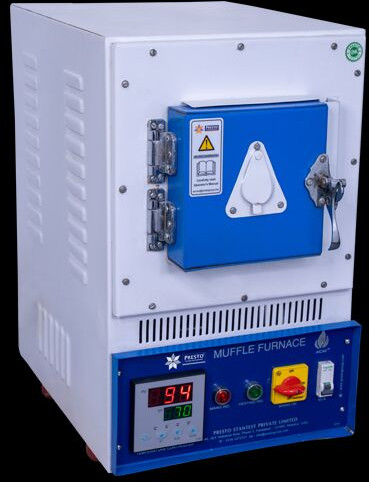

Muffle Furnace, Power : 20A, 220V, Single Phase, 50 Hz

Get Latest Price

Rated Power20A, 220V, Single phase, 50 Hz
FeaturesHighly accurate test results under uniform temperatures in the chamber, SSR-based output controls
Temperature RangeAmbient - 900ºC, Ambient - 1200ºC, Ambient - 1400ºC
Inner Chamber Sizes Available (Other Sizes on request)4*4*9 inch, 5*5*10 inch, 6*6*12 inch
DisplayGraphical LCD (Digital)/LED
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Send Enquiry

Company Information

Presto Stantest Pvt Ltd

Sector 32, Faridabad, Haryana

View Number

Member Since 3 Years
Nature of Business Manufacturer
Year of Establishment 1983

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Rated Power20A, 220V, Single phase, 50 Hz
FeaturesHighly accurate test results under uniform temperatures in the chamber, SSR-based output controls
Inner Chamber Sizes Available (Other Sizes on request)4*4*9 inch, 5*5*10 inch, 6*6*12 inch
DisplayGraphical LCD (Digital)/LED
Temperature RangeAmbient - 900ºC, Ambient - 1200ºC, Ambient - 1400ºC

MODEL MF - 4 (900)

The Presto muffle furnace is used to determine the ash content of a specimen. The percentage of ash in a material gives important insights into the properties of the substance. The Presto muffle furnace is specially designed as per IS & ASTM Standards. It finds wide application in various fields such as Medical research, agricultural, industrial, metal treatment, rubber & wool industries, metal treatment, ash determination.

The percentage of ash is calculated as the index of added mineral matter or loading. A known weight of the specimen is burnt, the ash is weighed, and the percentage is calculated.

The Presto Muffle furnace is finished in Autumn Gray & Blue combination painting to give it a corrosion resistant finish.

The Instrument comes complete with Instruction Manual; Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs.

Optional Accessories:
