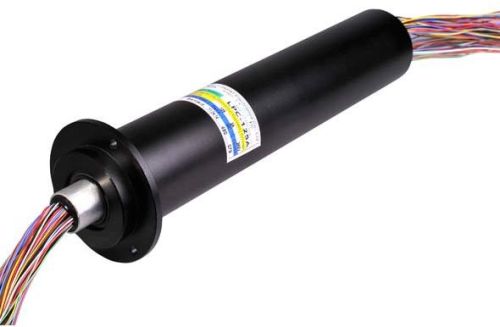

Multi Circuits Capsule Slip Ring (LPC-125A)

In order to fulfill the demands of our clients, we are engaged in offering Multi Circuits Capsules Slip Ring (LPC-125A). We offer it in a plethora of configurations, to cater to the variegated industrial requirements. We use the quality-approved basic inputs and latest techniques for developing it. It is widely used for the purpose of transmitting electrical and power signals. It is easy to install and demands the least of maintenance.

Description :

• This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
• The LPC-125A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface.
• Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
• Using a 90° V-groove ring design for each ring, the LPC-125 Aprovides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features :

• 125 circuits models
• 2 amps , 240VAC/DC per circuits
• Gold-Gold contacts
• Compatible with data bus protocols
• Sealed units are also available
• Flexible, color-coded, silver-plated, insulated lead wires
• Transfers analog and digital signals
• Also available with 5 and 10 amps power rings combined with 2 amps rings.
• Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage :

• Low torque minimize system torque budget
• Compact design to fit in the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360° continuous rotation
• High bandwidth transfer capability
• Addition of special components

Main Application :

• Electrical test equipment
• Manufacturing and process control equipment
• Indexing tables
• CCTV Pan & Tilt camera mounts
• Robotics, rotary sensors, urgent illumination equipment
• Exhibit &.display equipment
• Aviation ,military ,instrument ,medical equipment
• Mini-type wire-rolling machine
• Closed-circuit control
