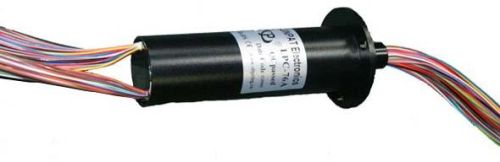

Multi Circuits Capsule Slip Ring (LPC-76A)

We are ranked amongst the distinguished manufacturers, suppliers, and exporters of Multi Circuits capsule Slip Ring (LPC-76A). Our business is based in China. Out deft professionals manufacture it with the utmost precision, by using the optimal grade materials and latest techniques in line with the predefined industrial standards and norms. We meticulously examine it on the basis of various quality parameters before delivering it at the clients place.

Description :

• This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
• The LPC-76A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
• Using a 90° V-groove ring design for each ring, the LPC-76A provides smoother running, lower torque and lower electrical noise than competitive slip rings.
• It is available in 6, 12, 18, 24, 36, 56, 76 circuit models.

Features :

• 76 circuits models
• 2 amps per circuit ,240VAC/DC
• Speed up to 300 rpm continuous
• Gold-gold contacts
• Compatible with data bus protocols
• Sealed units are available
• Flexible, color-coded, silver-plated, lead wires
• Transfers analog and digital signals
• Also available with 5 and 10 amps power rings combined with 2 amps rings.
• Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage :

• Low torque minimize system torque budget
• Compact design to fit in the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360° continuous rotation
• High bandwidth transfer capability
• Addition of special components

Main Application :

• Electrical test equipment
• Manufacturing and process control equipment
• Indexing tables
• CCTV pan / tilt camera mounts
• Robotics, rotary sensors, urgent illumination equipment
• Exhibit / display equipment.
• Aviation, military, Instrument, medical equipment.
• Mini-type wire-rolling machine
• Closed-circuit control
