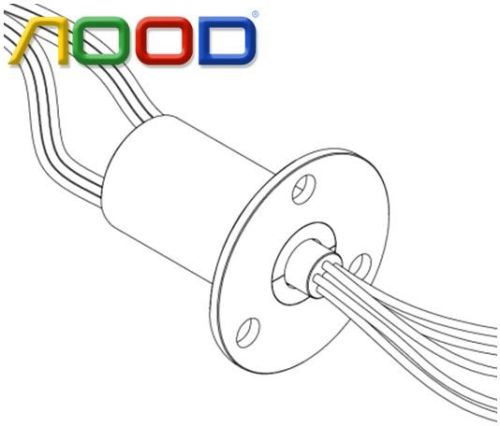

SRC12-18A miniature slip ring is especially suitable for small or miniature rotary system with 18 circuits, mainly be used for transmitting micro voltage, high frequency, EMF, thermocouple, computer signal, Strain gauge, current signal, Inter Bus, Profibus, RS422, RS485, PLC and other low controlling signals. SRC12-18A’s diameter is 12.5mm, using gold on gold contact material and designed highly-precision.
The series adopt double precision roller bearing and have a major characteristic of low torque, low contact resistance, long service life and reliable operation. Metal of anti-corrosion surface or plastic of high temperature resistant is option for housing and rotating axis, which can satisfy different applications from different customers.
Advantage
â—† Compact structure
â—† Gold-gold contacts
â—† Low torque
â—† Low electrical noise
â—† Low contact resistance
Option
â—† Wire length, terminal connector and heat-shrinkable sleeve
â—† Housing material
â—† Seal or protection grade
â—† Working temperature
â—† Outlet direction of rotor and stator
SRC12-18A Specification
â—† Circuits: 18 circuits
â—† Operating Speed: 300rpm
◆ Working Temperature: -20℃~ +80℃
â—† Working Humidity: 60%RH or higher
â—† Voltage Rating: 240VAC/DC or higher
â—† Current Rating: 2A per circuit
â—† Dielectric Strength: 500V@50Hz between each circuit
◆ Insulation Resistance: 1000MΩ@ 500VDC
◆ Electric Noise: ≤1mΩ
â—† Contact Material: Gold on Gold
◆ Lead Wire Size: Teflon® AWG30, silver plated copper UL
â—† Lead Wire Length: Standard 300mm (11.811inch)
â—† Housing Material: Metal /Plastic
â—† Protection: IP54 or higher
SRC12 Miniature Slip Rings Application:
â—† Satellite and antenna
â—† Sub-sea camera and surveillance
â—† X-ray/protection systems
â—† Closed-circuit monitoring, Spherical head, Monitor
â—† Manufacturing and process control equipment
â—† Electrical testing equipment
â—† Robotics, Manipulator
â—† Medical equipment
â—† Experimental equipment
â—† Radar communication equipment
â—† Aviation, Aircraft
â—† Automatic door, Revolving door
â—† Automatic curtain
Please contact us if any special applications, our sales engineers will provide you recommendation and customization.
