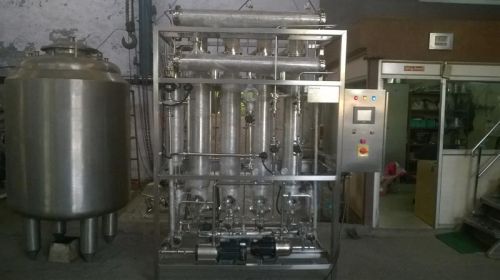

Stainless Steel Multi Column Distillation Plant, For Industrial Use, Feature : Auto Reverse, High Quality

Our company is the remarkable manufacturer of ultimate range of Multi Column Distillation Plants in India. Deigned with latest technology, these offered Multi Column Distillation Plants are efficient for producing chemical free water in accordance to our clients requirements. Our offered Multi Column Distillation Plants are manufactured with state of art facility under the supervision of experts. Quality control is our top priority and ensures that all our offered Multi Column Distillation Plants passed laid quality checking procedures. Our offered Multi Column Distillation Plants are appreciated for their efficiency, corrosion resistant, durability, easy operation and easy maintenance, thus makes us as ultimate choice as Multi Column Distillation Plants manufacturers in India to our esteemed clientele. We are offering finest quality Multi Column Distillation Plants at competitive prices available in the market.

Millipure water systems make Multi column distillation plant produces WFI on the basic principle of Distillation by Thin Film Evaporation. This process involves a shell and tube heat exchangers (column) where heat transfer is done by falling film evaporation.

Impurities, along with the pyrogenic load, are continuously purged from every column. At start-up during pre-heating and self-sanitization the residual accumulated water will also drain off before WFI is produced.

• Capacity Varies from 50 to 10,000 Liters per hour
• The equipment is designed to meet the stringents standards set by major pharmacopoeias such as USP, IP, BP and JP
• The plant is designed and manufactured as per cGMP and in accordance to ASME BPE requirement.
• Distillation is based on falling film evaporation technology.
• High Temperature is reached for every drop of water produced thus ensuring sterility levels demanded for WFI.
• Double Tubesheet heat exchangers for first column
• Separation of the pyrogenic load is achieved through centrifugal force generated during the upward movement of the steam.
• During the process, feed and distilled water within the plant is in continuous motion and hence there is no stagnancy.
• All inter connecting piping is done by orbital welding with high purity argon gas and welding joints can be inspected with Boroscopy machine.
• PLC and SCADA based system with online printing facility to achieve compliance with 21 CFR PART 11 and GAMP 5 so less human interferance and low maintenance required
• Complete set of Documentation like DQ, IQ, OQ, FAT, SAT with certicates and also assist client to develop PQ to achieve compliance with necessary regulatory authority.
• Superior quality with on time delivery and low maintenance with optimum and compact design.
• Simple, user friendly and reliable design.
• Core Features & Characteristics of the system is crevices & dead leg free design, <0.4µ RA finish from inside & outside <0.8 µ RA, complete drain ability; Non– Contact MOC -304.
• Unit is completely piped, wired and assembled on a single skid at the factory hence reduces installation cost and startup time
