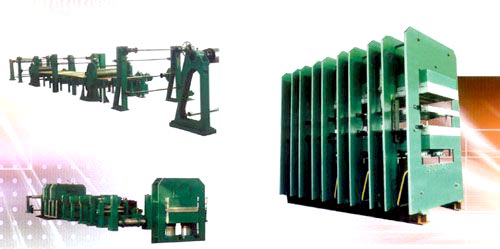

Multi Daylight Hot Press Machine

₹ 45 Lakh - ₹ 1.80 Cr / Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Our Multi Daylight Hot Press Machine is a wide choice made by buyers as it is of high automation level and compact advanced structure. The Hot Press Machine that we deal in is suitable to vulcanize giant conveyer belt such as common conveyer belt, nylon conveyer belt, wire rope conveyer belt, anti-fire conveyer belt and rubber plate, etc. Our machine is accurately processed having high etched and wear-resistance.
Highlights :

The main machine is applied for modem frame structure and equipped with special purpose hydraulic unit.
The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot platens can be measured and regulated automatically.
This will improve the control level and provide with high efficiency of production and low intensity of labor.

Specifications :

Total Pressure(MN)	28.00
Plate size(mm)	1400×5700×80
Plate clearancemm	200-400
Plate pressure(kg/cm2)	35.0
Piston diameter(mm)	Ø450
Piston stroke(mm)	400
Hydraulic pressure(Mpa)	17.6
Temperature	170
Steam pressure(Mpa)	1.0
Num of hydraulic pressure jarïsets/dias	10
Motor power(KW)	66
Overall dimension(L×W×H)(mm)	5700×2350×4200
