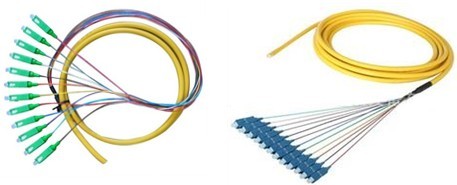

Multi Fiber Cable Assembly

We are offering multi fiber cable assembly.
feature:
1.high precision ceramic ferrule
2.optical fiber transmission
3.precision grinding and comprehensive testing
4.good performance of il & rl
5.high repeatability, good interchangeability
6.length &type of connection for custom-made
7.odf frame to the optical transmission equipment connection
technical specification：
fiber mode sm (9125um),mm (50125um ,62.5125um)
fiber count 4 , 6 , 8 , 12 & 24 fiber
cord diameter φ2mm ,φ0.9mm
applicable connector fc,sc,st,lc,mu,mt
ordering information：
fanout cord: rc 12f sc upc sm φ0.9 - l1 l m
1 2 3 4 5 6 7 8
1 cable type rc:distribution cable
rj:jacket ribbon cablerb:
bare ribbon cable
2 fiber count 2,4,6,8,12,24 fiber
3 connector type fc,sc,st,mu,lc
4 endface pc,upc,apc
5 fiber mode sm=single mode,mm=multimode
6 branch diameter φ0.9,φ2.0
7 branch length l1=0.5,0.6,0.7.....1.0meter,or as required
8 pigtail length l=1,2,3,4......meter,or as required
