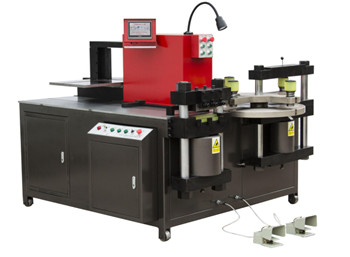

Multi-function Busbar Bending Machine

1、introduction
the machine is equipped with punching cutting bending three units,the three units can work at the same time,and will not influence each other.the punching unit is turret structure,the bending unit is closed on the top,the bending angle is with storage function.the main function is processing different types of copper(brass) aluminum bus bar.when it is working,worker just need to choose the unit,then machine will cutting and punching(holes,long holes square holes special holes),horizonal bending,vertical bending embossing flatting torsional hemp flowers ect.
2.main characteristic:
★siemens 40 plc control system from german, which is with automatic shutdown function,and can control the down time of cutting unit and punching unit,it is more stable and reliable than traditional relays.
1.punching unit is with nodular-cast-ironed and turrent typed turntable with 468 molds holes,which is a who one,so that the holes for molds(the molds is processed by our processing center) with higher precision and the clearance of the molds and turntable is 0.00-0.05mm,improving the concentricity,then the life of molds can be longer and need not change the molds so frequent.
by added punching position,the machine can locate x axis and y axis mechanical double direction location. That makes workers need not to cross lines and make punching marks ， then improving the operating efficiency and accuracy of punching.
