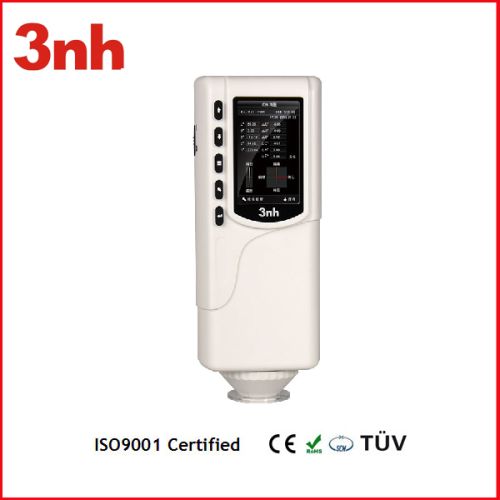

Multi-function Color Meter

MOQ1 Set(s)
InterfaceUSB/ RS- 232
PC softwareCQCS3 software
Color Difference FormulaΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Illuminating/Viewing Geometry8°/ d
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2011

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Illuminating/Viewing Geometry8°/ d
RepeatabilityΔE* ab 0. 03
Color Difference FormulaΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Color SpaceCI E L AB，XYZ，LCh，CI E RGB，CI E LUV
Measuring apertureΦ8mm
PC softwareCQCS3 software
IlluminantD65，A，C，D50，F2，F6，F7，F8，F10，F11，F12
InterfaceUSB/ RS- 232
Storage100 Standards, 20000 Samples

Specification Parameters
IlluminatingViewing Geometry: 8° d
Light Source: LED Light
Sensor: silicon photodiode array
Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture
Color Space：CI E L AB，XYZ，LCh，CI E RGB，CI E LUV
Color Difference Formula: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromaticity Data: WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCI I
Observer: CI E 10°
Illuminant: D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12
Display Data: Colorimetric Value, Color Difference ValueGraph, PASSFAIL Result, Color Offset,
Measuring Time: 0. 4s
Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument: within Delta E*ab 0.2
Dimension: 205*67*80mm
Weight: 500g
Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life: 5 years, more than 1.6 million measurements
Screen: TFT 2.8 inch（16: 9）
Interface: USB RS- 232
Storage: 100 Standards, 20000 Samples
Operating Temperature:0~40℃（32~104°F）
Storage temperature:-20~50℃（-4~122°F）
PC software: CQCS3 software
Optional accessory: miniature thermal printer, powder test box
