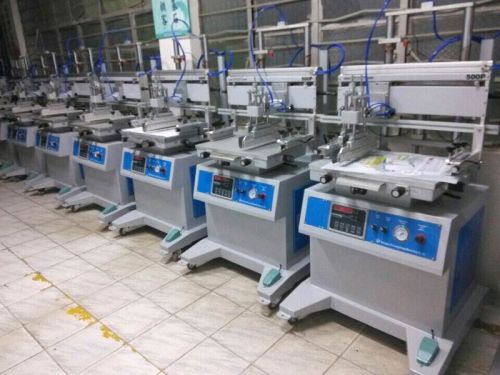

Multi-function Flat Screen Printing Machine

We are offering tm-500pt multi-function flat screen printing machine
technical parameter:
worktable largest size
400x600mm
max printing area
350x450mm
max printing speed
1200pcshr
air consumption
104litremin（6bar）
power
110220v 6050hz 750w
dimensions
800x1000x1500mm（lxwxh）
weight
178kg
machine features：
1.with microcomputer control ,high automatic function, easy setting and operation.
2. Import the component from germany and japan, the function can be trustiness.
3. The oil return and scraper double mould, meet the every kind of the printing requirements.
4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.
5. Can balance the scraper by itself, to ensure the printing pr essure equality.
6. Use the import axes, axile bush made the screen scraper placidity slide printing.
7. The slide speed can adjustment independently, it is convenient and fast.
8. The printing is high precision, convenient and quick.
9. With the function of vacuum inhale, can printing the very thinly things.
random accessories：
one tool box one piece of chinese specifications one set of tongs one set of allen key. One set of philip'shead screw 、one of the located air cylinder.
