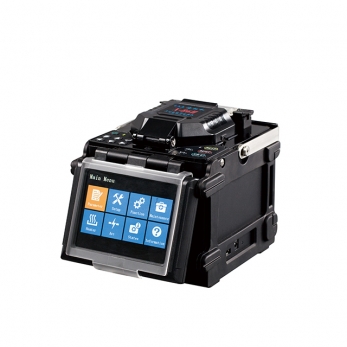

Multi-function Fusion Splicer

Loss evaluationAvailable
Magnification300 times for single display, 150 times for double display
Cleaved length10ï½16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating 250ï½1000μm )
Splicing data recordStoring up to 4000 groups of records
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Cleaved length10ï½16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating 250ï½1000μm )
Volume/Weight160mm(L)×150mm(W)×145mm(H) / 2.75kg (including battery)
Loss evaluationAvailable
Typical splice lossSM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB
Photoelectric systemTwo high sensitive cameras, 5.7’ 640×480 colorful LCD
Power supplyAdaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V
Operate environmentAltitude: 0ï½5000m; Relative humidity: 0~95%; Temperature: -10âï½+50â; Wind speed: max 15m/s
Tension test1.8~2.2N
Auto-HeatAvailable
Return loss<60dB
Cladding diameter80 -150μm
Splicing program40 groups
Typical splicing time8 seconds
Coating diameter160 -900μm
Electrodes lifetimeMore than 4000 times splicing, electrodes can be replaced conveniently
Operate modeManual, Automatic
Magnification300 times for single display, 150 times for double display
InterfaceGUI menu interface, easy operation
External portUSB2.0 port, used to derive splicing record data, software upgrade
Heating time28 seconds for 60mm, 40mm shrinkable sleeves
Battery capacity8800mAh, 250 times fusion and heating, pluggable, real-time power monitor
Applicable fiberSM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), others(including G.657)
Splicing data recordStoring up to 4000 groups of records
