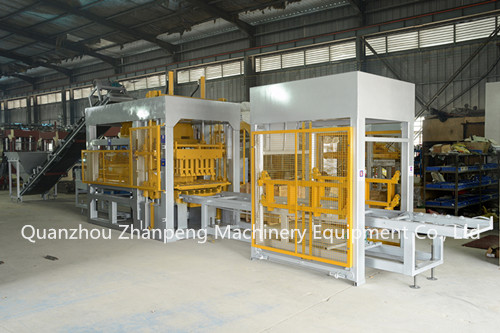

Multi Functional Paving Brick Forming Machine

Fully-automatic Concrete Block Making Machine
It is a verstile but low-cost concrete block machine for start-up. It is capable of producing normal concrete bricks, hollow and solid blocks, segmental retaining wall blocks, and other materials for construction and civil engineering
Robust, compact and trouble free
Highly cost-effective
Can be equipped with a face mix device for pavers with colored layer.
Structure:
The machine frame is a sturdy structure made of section steel.
Wear-resistant slide bushings are used in the sliding metal bearings of the guide pillars that guide the moving of mould and compaction head.
Double-sliding metal bearings are mounted on two guide pillars so that mould and compaction head move smoothly without error.
After-sales service:
1. Provide one-year free warranty and life-long service;
2. Assist users to formulate production formula;
3. Set up completed users’ data and provide a better follow-up service;
4. Supply spare parts and moulds;
5. Provide online interaction platform with customers on the internet and remove troubles for customers at any time;
6. Provide feedback system for customers on the internet;
7. Update the latest industrial information and relevant data of the company.
QT5-15
Technical data:
1) Size and output of major products:
A) Hollow blocks: 390*190*190mm,5PCSmould
B) Perforated bricks: 240 X 115 X 90mm, 16PCSmould
C) Solid bricks: 240 X 115 X 51mm,34PCSmould
D) Color floor tile: 200 X 100X 60mm,18PCSmould
2) Pallet size: 1100X 560X20mm
3) Cycle time: 15 - 23 seconds
4) Type of major vibration: Table vibration
5) Vibration frequency: 3800 - 4500 timesminute
6) Rating pressure:25Mpa
7) Profile size (including pallet delivering device and green block delivering device):9450 X 3300 X 2700mm
8) Weight: 6900kg.
