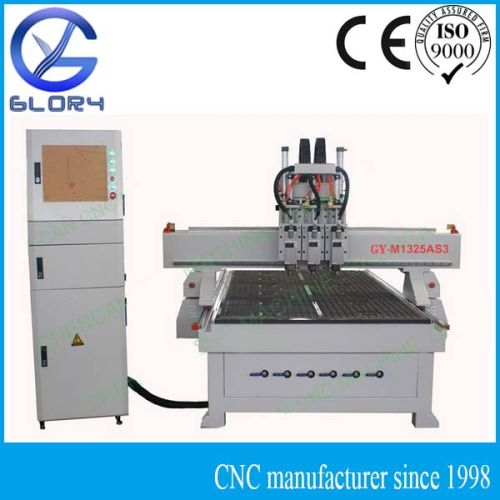

Multi Head CNC Engraver

We are offering multi head cnc engraver,
highlight:
asynchronous multi-head cnc machine is customized for changing the tools within 2-4 pieces. It's not only economic, also can realize auto tool change, save the time of manual tool change and improve the working speed and precision.
Key features:
1. Seamless steel lathe bed
2. Original weihong computer controller, dsp handle and syntec is optional
3. Three 3.5kw spindle
4. Each spindle can use different tools, which equals to a simple atc cnc
5. Re-carving function after power failure
6. Vacuum absorption working table with t-slot
ideal for:
1. Timber
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-m1325as3
working area
(x axis) 1300mm
working area
(y axis) 2500mm
clearance (z axis) 200mm
spindle 3.5kw air-cooled
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) germany ball screw
drive motors stepperservo motors
inverter fulingdelta
driver yakoyaskawa
command g code
cutter diameter φ3.175-φ12.7mm
maximum travel speed 35mmin
table top vacuum table with t slot for fixing clamps
controller weihong computer controller
power requirements 3-phase 380v50hz
custom sizes and upgrades for the components are available on request.
Optional parts:
1. Rotary axis
2. Alignment pop-up pins
3. Vacuum pump
4. Heavy duty lathe bed
5. Different power requirements, etc.
