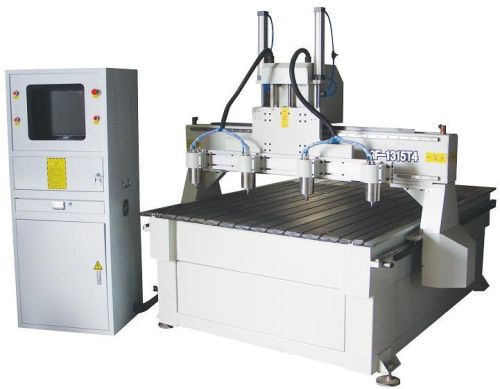

1315-z4 Multi Head CNC Router

multi head cnc router 1315-z4
Performance Parameters:
1. Multi spindle cnc engraving machine (optional 2-10 spindle,customers can order any specifications) : Multi spindel can engrave same design can spindle at same time, which improves the processing speed,one machine can finish multi machine working efficiency in the same time; The machine can use one spindle engraving and move other spindles to one side or closed when engraving large workpiece or the products quantity is not large.Reveal human nature design, effective and reasonable control the production cost
2. Multi wooden engraving machine is suitable for batch processing, product consistency, quality high, and greatly reduce the cost of purchase machine cost, multi-use, economical.
3. Multi spindle cnc engraving machine made by thick wall steel structure design,after welding tempering aging treatment, strong rigidity, strength,steady running,It is don’t deformation and wobble even long time high-speed operation.
4. High speed cnc engraving machine adpot Taiwan AMT high precision,zero clearance square model aggravating sliding linear guide rail, heavy cutting, the processing speed, high efficiency; At the same time using international brand micro step subdivision stepping motor with high speed drive (optional servo drive), power is large and transmission stable, stable performance, make sure the machine long time no intermittent high-speed operation,it is arrive 20 meters/min dull speed.
5. Multi CNC engraving machine adopt Weihong PCI card(contac with us computor), Make machine and the computer with seamless, simple operation, the unique intelligent budget rules, make motor play the potential capacity,
song linear synchronous processing more perfect, and long time pillow assignment: have power, breakpoint renewal, processing time and forecast carved function, the real human nature design. Curve and linear processing at same time is perfact. And long time engraving: have power, breakpoint renewal, processing time and forecast carved function, the real human nature design. Complete support ISO standard G cold instruction, carved processing (ENG) format, compatible Type3 / ArtCAM/Ucancam and many kinds of processing code generated by CAD/CAM design software.
6. Special designed for batch, small workpiece requirements customer, suitable for processing cupboard door, art carved screen, process window, carved gifts, solid wood art mural, woodworking calligraphy carving, picture frame, electrical counter face, sports equipment, analyzed the violin, non-ferrous metal engraving and cutting and many other industries.
Machine Parameters:
XY axis travel 1300mm *1300mm
Z axis travel 200mm
Repeated localed precision +-0.02mm
System resolution +-0.0025mm
Engraving speed 8m/min
Spindle power Water cooled spindle1.5kw*4
Spindle speed Water cooled spindle 6000-24000rpm
Tools handle diameter 3.175mm,4mm,6mm
Drive system 3 axis stepper motor driver
Optional 3 axis AC servo motor drive
Control system Shanghai Weihong PCI control sytem
Transmission
System X Y AXIS Taiwan AMT high precision, zero clearance square model aggravating sliding linear guide rail
Z AXSI Taiwan AMT linear guider rail+ ball screw
(Z axis unique adding cylinder to make weight design )
Frequency changer Taiwan Delta 3.7kw
Software support TYPE3,UCANCAM,ARTCAM,MASTERCAM,UG,AutoCAD
Working voltage AC220V/50HZ
Other parameters Concentrated lubrication system
Package Wooden case
Out size 2m*2m*1.75m
Weight 1000kg
Should any questions pls contact with us feel free
