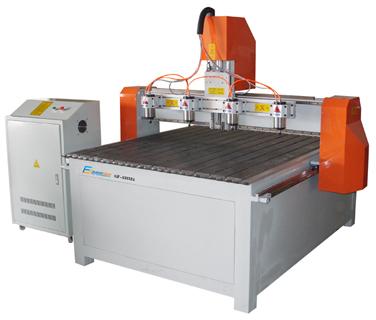

Multi Head CNC Router

Multi Head Cnc Router
x Y-axis Effective Travel:1300 * 1300mm
z-axis Limited Travel: 200mm
processing Speed: 8m/min
spindle Power: 1.5kw X (2-10)or 2.2kw X (2-6)3kw(2-4)
spindle Speed: 6000-24000rpm
tools (handle Diameter):3.175mm /4/6mm/12.7mm
software:type3,Artcam,Proe,Ung,
control System: Pci System
processing Precision: +-0.05mm
repeat Positioning Accuracy: +-0.02mm
drive System: Three-phase Stepper
guideway: Taiwan Pmi Linear Guide Way
performance Advantages:
1.multi-spindle Carving (optional 2-10 a Spindle, Can Be Customized Any Type): in the Same Pattern Can Be Multi-spindle Work Simultaneously, Greatly Improving the Processing Speed, the Same Time to Complete the Efficiency of Multiple Devices; in a More Processing Capacity is Not the Case, Can Work Independently to Achieve a Single Spindle, Effective and Reasonable Control of Production Costs.
2. Batch Processing, the Product Consistency, High Quality, Greatly Reduced the Production of Equipment Purchase Cost of a Machine, the Economic Advantages.
3. this Machine Adopts the Design of the Overall Thick all Steel, Welded Tempered Aging, Steel Strong, Forceful, Smooth Rotation, Making a Long Run At High Speed No Distortion, No Jitter.
4.the Machine Tool Drives with Linear Guide Intime Taiwan, Three-axis All-track, Can Be Re-cutting, Processing Speed and Efficiency; the Same Time Using Micro-step Breakdown of International Brands and High-speed Stepper Motor Drive, Power is Large and Transmission Smooth, Stable Performance, to Ensure Long Non-stop High-speed Operation, Up to 20 Meters per Minute Over the Air-way Speed.
5. Embedded Pci Control System, So that Seamless Integration of Machine and Computer, Simple, Unique Intelligence Budget Law, Give Full Play to High-speed Potential of the Motor, Linear Synchronous Processing More Perfect Song, and the Long Carefree Operation: Power , Breakpoint Carving, Processing Time and other Functions, the True Human Design. Full Support for Iso Standard G Instructions, Carving Processing (eng) Format, Compatible Type3/artcam/wentai Variety of Cad/cam Design Software Generate the Processing Code.
6.designed for High-volume, Small Parts Processing Customers Design, Suitable for Processing Cabinet Doors, Art Wall Relief, Craft Fan Window, the Relief Gifts, Solid Wood Artistic Murals, Calligraphy, Wood Carving, Art Frames, Electrical Counter Surface, and Sports Supplies Equipment, Violin Arc, Carving and Cutting Non-ferrous Metals Industries, and Many other Products.
