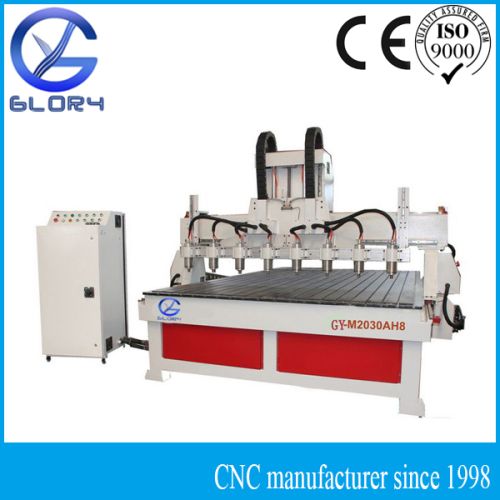

Multi Head CNC Router

We are offering multi head cnc router.
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Manual oil-injection system
8. Eight spindles work synchronously
9. Distance between each spindle can be manually adjusted
10. Dsp handle controller with usb interface
11. Gantry movement
ideal for:
1. Timber
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-m2030bh8
working area
(x axis) 2000mm
working area
(y axis) 3000mm
clearance (z axis) 220mm
machine dimension 2140*3400mm
spindle 2.2kw water-cooled
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion, 1.25 module
drive system
(z axis) germany ball screw
drive motors stepper motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum travel speed 35mmin
table top aluminum t-slot table protected with pvc
controller dsp handle
power requirements 3-phase 380v50hz
custom sizes and upgrades for the components are available on request.
