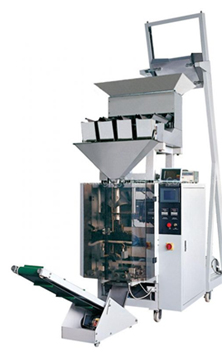

Multi Head Electronic Weigh Filler

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Microprocessor Controlled Load Cell based, accurate & Consistent filling by weight. Membrane-touch keys for setting parameters for weigh filling and for exact weight. User Friendly: Maximum online....

View More Details

Send Enquiry

Company Information

Hi-tech Coding Systems

Goregaon, Mumbai, Maharashtra

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Microprocessor Controlled Load Cell based, accurate & Consistent filling by weight.
Membrane-touch keys for setting parameters for weigh filling and for exact weight.
User Friendly:
Maximum online settings. Easily accessible for print mark and Batch Coding settings. Fast and Easy size change over. All setting made via Touch Key & interactive message on screen.
Efficient:

No Fill: No Pouch Logic hence No packaging material or product loss. Perfectly sealed pouches. High outputs with high fill accuracy. Low maintenance
Speed: 5000 kg per day.
Load Cell Based Microprocessor Controlled Multi Track Electronic Weigh Filler Pouch Packing Machines
Model:P-1000 EWF
Fill Size:50 gms to 1000 gms
Pouch Size: Width: 75 mm to 250 mm, Height : 100 mm to 450 mm
Compressed Air: 10 Cu Mtr/Hr @ 5Kg/Sq.cm

Accessories:

Nitrogen Flushing System
Gusseting Assembly
Chain Cutting of Pouch
Batch Coding Unit Auxiliary Feed Systems

Auxiliary Feed Systems:

Screw Conveyor with Dump

Packaging Material: Laminates/Virgin films
Output: Max 40-50 Pouches per Minute (Depending on Product and Type of Packaging Material)
Description:
Vertical From Fill & Seal Machine for producing pillow/Centre Sealed & Filled pouches fully automatically from single reel of Laminate/Packaging material. Positive Film unwind by D C Motor so as to allow very thin films to be used. Online tracking, print registration and Batch Coding adjustment by turning of knobs. Machine available in Gripper Draw off version or Belt Draw off version as required for drawing down the film. Height of Pouch controlled by Microprocessor based print Registration system. Triple Electrical Protection provided. Machine provided with Perspex and Steel Guards.
Application:
For packing by exact weight Free Flowing Items Like Wafers, Snack Foods, Vermicelli & Pastas, Wrapped Toffees & Candies, Dry Fruits, Tea, Sugar, Rice, Pulses, Vegetable seeds. Most Suitable for packing of Costly Products.
