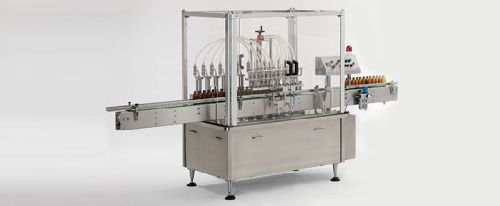

Multi Head Liquid Filling Machine

Description

• The machine consists of input conveyor, filling unit & exit conveyor.
• Filling operations works on the piston & cylinder, & N.R.V concepts.
• For easy handling of containers or jars, pucks are provided on to the conveyor.
• Filling unit consists of 4 Piston Cylinder assly & non – return values for this. Common drive is taken.
• When bottles or jars comes under filling station a stopper mechanism holds the bottles till the filling takes place & release after filling finishes.
• At a time four bottles will filled & comes out from exit conveyor.
• From exit conveyor bottles are to be manually picked - up.
