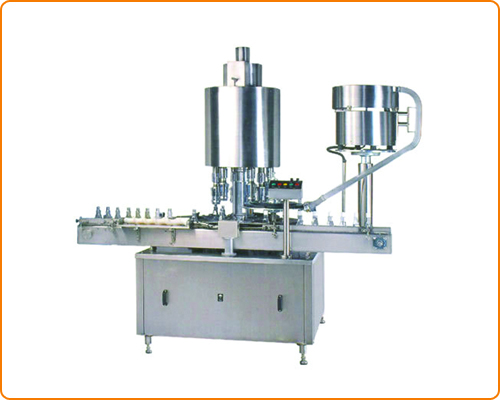

Multi Head Screw Capping Machine

Get Latest Price

Electrical SupplyThree Phase + Neutral + Earthing
Electrical Load1.5 KW
Air PressureMinimum : 6 Bar, 0.5 CFM.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

The Radhey Export

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation :

The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.

Salient Features :

No container no cap arrangement.
Single motor synchronizes conveyor, star wheel & platform turret.
Adjustable height of conveyor belt.
Pick & Place arrangement.
Torque adjustable.
Low noise level, low power consumptions.
No cap, No container arrangement.
Motorized Height Adjustments.
Acrylic cabinet.
Safety Guard for Operation and Protection.
Specially designed hopper is to increase storage capacity of bowl.

Model

DASCM-100

DASCM-150

DASCM-200

Output / Hour*

3600 to 6000 bottles

3600 to 9000 bottles

4000 to 12000 bottles

Direction of Movement

Left to Right

No. of Sealing Head

4 Nos.

6 Nos.

8 Nos.

Electrical Specification**

Main Motor	1 HP / 415 Volts / 50 Hz	2 HP / 415 Volts / 50 Hz
Cap Feeding Bowl	300 Watt

Height of Conveyor**

860 mm to 910 mm

Machine Dimensions**

2135 mm (L) x 1120 mm (W) x 2250 (H) Approx

2150 mm (L) x 1120 mm (W) x 2250 (H) Approx

2135 mm (L) x 1200 mm (W) x 2225 (H) Approx

Case Dimensions

2650 mm (L) x 1250 mm (W) x 2250 (H) Approx

2650 mm (L) x 1350 mm (W) x 2250 (H) Approx

Net Weight

900 Kgs. Approx

1050 Kgs. Approx

Gross Weight

1250 Kgs. Approx

140 Kgs. Approx

Change parts required

(A) Container: Star Wheel, Back Guide, Feed Worm
(B) Cap Die, Delivery Chute, Bowl & S.S. Star wheel

INPUT SPECIFICATION
Screw Cap Specification	Diameter**	22 mm to 56 mm***
	Height**	15 to 18.3 mm
Container Size**	Round Shape	Ø 22 mm to Ø 100 mm* Respectively Height 40 mm to 240 mm* (Height option for other bottle height available)
	Flat / Square	15mm to 100 mm (Length)* Respectively 10mm to 50 mm (Width)* Respectively Height 40 mm to 240 mm*** (Height option for other bottle height available)
* Depends on bottle size, shape and Neck dia of container. We can supply as per customer requirements. * With help of change parts.
