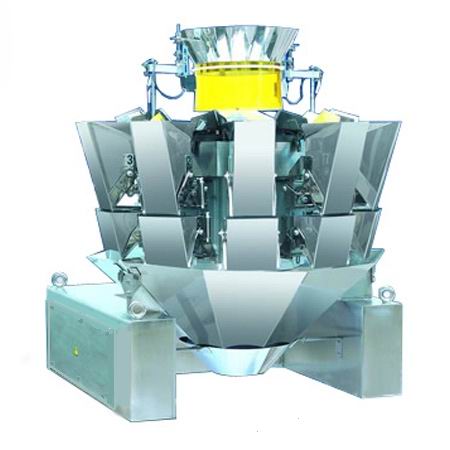

Multi Head Weigher

We are offering multi head weigher.
Optional(different prices):
1. weigh buckets can be 1,3 or 2,5 liters
2. all surfaces in contact with product can be smooth, dimpled or with teflon or electroliticpolishing treatment depending on product.
3. vibrating pans can be inclinated.
4. collating chute can be more or less inclinated.
5. top cone can be with rotating motor.
collect bucket:
this optional bucket collects the product at end of the bottom funnel and drops carefully to the bagger avoiding product dispersion and mistreating.
use range:
dry & processed foods, fresh foods. For example: sank foods, seeds (pulses), coffee(granules/beans), tea, sugar, grated chess, bakery products, candies & confectionery, rice, nuts & dried fruits, spices, small pasta pieces, pet food(pellets) etc.
other: non food
for example: small - nuts, bolts, washers, auto, electrical and plumbing parts etc.
All parts contact food are stainless steel
features:
all food contacted surface is made of stainless steel, all parts are enclosed to prevent product build-up. Dustproof construction
speed adjustment of hopper movement by step motor, no air consumption
statistical data-inspect on screen and via optional printer output;
optional language of operation. English, japanese, chinese, italian ,german, spanish, russian etc.
options: dimpled plate on all product contact surfaces, overweight discharge equipment, collection hopper, printer.
net weight: 300kg, gross weight: 390kg
packing size: 108x108x105cm, 104x73x91cm
technical:
each dump weighing range 8-1000g
combination capacity max 3000ml
highest speed 60 bags/min
length of material max 80mm
each bag error 0.2-1g
weighing accuracy 0.1-1g
mode of driving step motor
form of dipper double-row non-memory dippers
preset function max 50 choices
material the part contacting materials is made of 304 stainless steel
level control photoelectricity(pass type)
power source ac200/220v±10% 1.5kva
dimension 950(l) * 950(w) *1000(h)mm
