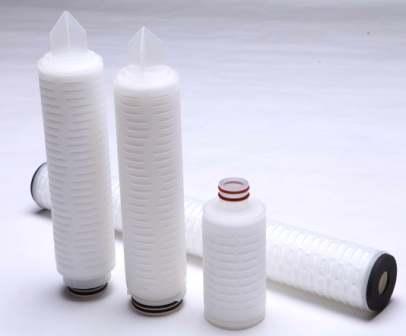

Multi Layers Fine Fiber PP Polypropylene Membrane Filter Cartridges

We are offering multi layers fine fiber pp polypropylene membrane filter cartridges.
◆ complete polypropylene structure
multi layers of composite fine fiber membranes guarantees the excellent filtration effective
◆ complete polypropylene structure
made of 100% high quality polypropylene material
◆ designed for large scale filtration
suitable for the fluids which is high viscosity or contain high bio-burdens
◆ no media migration into the process fluid
all the material have passed the migration test
◆ effective filtration area
0.6㎡ per 10"
◆ materials
filter media:polypropylene
support layers:polypropylene
inner core:polypropylene
outer support:polypropylene cage
◆ cartridge dimensions (nominal)
outer diameter: 69mm (2.75")
inner diameter: 33mm (1.30")
length: 10"- 254mm
20"- 508mm
30"-762 mm
40"- 1016mm
*(length is based on doe adapter)
◆ cartridge purity
free of surfactants, resins, binders and adhesives.
Standard: clean and flushed with pyrogen-free water.
◆ typical applications
high viscosity fluids,such as syrups
,juice
ink,plating solutions
fine chemicals
◆ operating conditions
normal operating temperature: up to 55℃ (131℉)
max.operating temperature.: 80℃ (172℉)at△p≤1.0 bar (14psi)
max. Differential pressure:
normal flow direction 4.2 bar (60 psi) at 25℃ (77℉);
reverse flow direction 2.1 bar (30psi) at 25℃ (77℉).
Ph value compatibility: 1-13
◆ sterilization
flush with hot water at 82℃(180℉) for 30 minutes
◆ materials safety
meet the current fda and 200272ec standard.
Endotoxin: ＜0.25 euml
extractables: 0.03g 10"
