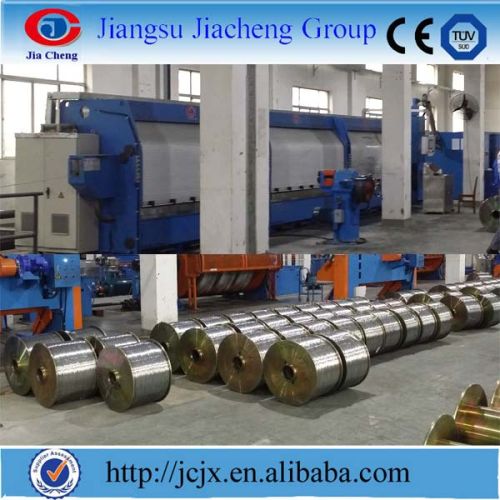

Multi Motor Two Wire Aluminum Or Copper Rod Breakdown Machine

Jcjx- lsd450-2 multi two wire separate motor aluminum or copper rod breakdown machine
application
this non-slip rod reakdown machine is used for drawing copper, aluminum or aluminum alloy rod to wires in the wire and cable industry.
feature
1. Full immersion, can guarantee the wire’s cooling and lubrication.
2. Every capstan is transmitted by single motor, the tensile rate can be adjustable, it can also fast die change, suitable for several kinds of material.
technical data
machine type
lsd 45013-2
lsd45011-2
lsd4599-2
drawing capstan dia. (mm)
φ450
φ450
φ450
max. Die no.
13
11
9
inlet dia. (mm)
copper
φ8
al, al alloy
φ9.5
outlet dia. (mm)
copper
φ1.2-φ4.2
φ1.5-φ4.2
φ2.0-φ4.2
al, al alloy
φ1.7-φ5.0
φ2.2-φ5.0
φ2.8-φ5.0
max. Drawing speed (ms)
30
25
20
single motor power (kw)
3755 (ac)
capstan arrangement
horizontal type
lubrication type
full immersion
take-up type (optional)
double take-upsingle take-uporbital coiler
optional equipment
on-line horizontal annealer
on-line continuous annealing device
machine type
450t
450tb
annealing wire dia. (mm)
φ1.2-3.5
φ1.2-4.2
annealing voltage (v)
0-60
0-60
annealing current (a)
0-6000a (dc)
0-5000a (ac)
max. Annealing speed (ms)
25 ms
