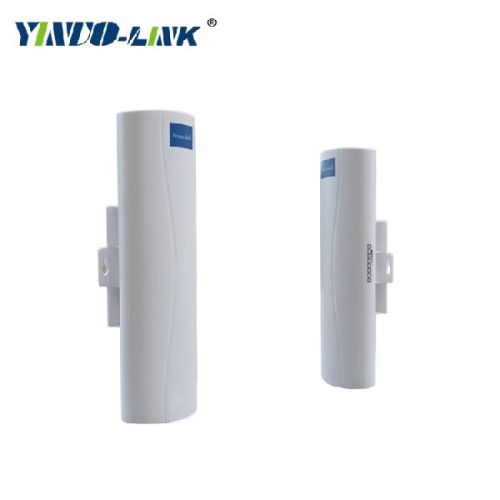

Multi Point Outdoor CPE Wireless Access Point

description:

yn-cpe01 5.8g outdoor bridge, working in the 5ghz frequency band, using 802.11n technology 2x2 two-receiving wireless architecture, support airspeed up to 300mbps, compatible with 802.11an protocol, using ofdm modulation and mino technology, support point-to-point (ptp) and the point-to-multipoint (ptmp) network architecture connects lans that are distributed across different locations and between different buildings. It is a carrier-class outdoor wireless ap that truly realizes high performance, high bandwidth, and multi-functional platform. The 500mw high-power output is matched with an outdoor 5.8g 17dbi fan-shaped 120-degree sector antenna. The wireless signal coverage area is wider and the penetration ability is stronger. With high stability, high transmission rate, and high receiving sensitivity, it can concurrently have 50 people. It is suitable for high-bandwidth, large-area wireless signal coverage. It is suitable for large-scale wifi hotspot coverage in outdoor areas, townships, rural areas, schools, parks, and squares.

features:

1. External dual polarization 17dbi gain 120 degree sector antenna;
2. Super anti-jamming and multi-path effect capabilities, air interface speed up to 300mbps;
3. Standard 100m ethernet interface;
4. Rf radio frequency work in the range of 5725~5850 ghz, 500mw high power rf output, adjustable power;
5. It has advanced anti-interference neighbors' ability to automatically adjust the optimal transmission rate according to signal strength and transmission distance;
6. All-round automatic sweep function can automatically scan and select the best channel according to the surrounding wireless environment.
7. With bi-directional adaptive modulation capability, it automatically adjusts the radio link quality in turn, optimizing the spectrum utilization to solve the signal attenuation.
8. Using 24v 1a poe power supply circuit, 802.3at protocol.
