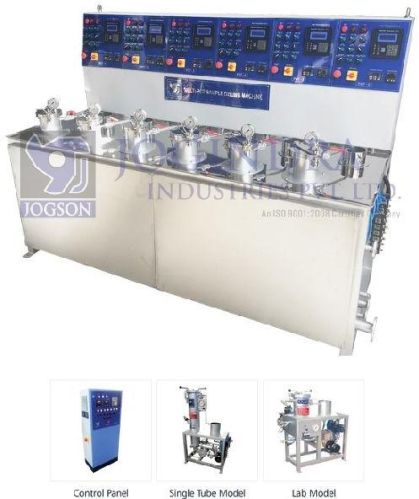

MULTI POT SAMPLE DYEING MACHINE

JOGSON Multi Pot Sample Dyeing Machine is ideal to run 2, 4, 6, & 8 Pots coupled to each other, dyeing yarns of same colour or running individually to facilitate dyeing yarn of different colours simultaneously. This is very useful for standardizing the recipes of dyeing before batches are taken in bulk. This avoids trial and error methods, hence saves time and resources utilized. Each pot has a range from 100 gms. To 1.5 kg. per batch as per the requirement. The apparatus allows sampling trails in laboratory. Each vessel can be charged with different type of materials. Each kier has its own pump and controller. Main feature of this machine is a perfect reproducibility from laboratory to bulk production. The machines are available with different levels of automations. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

• Machine body & all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
• Turbo pump for liquor circulation (In-Out & Out-In) with Inverter drive for varying speed
• Control panel with JOGSON dyeing programmer TPR13I/PLC & touch interface (Optional)
• MLR of 1:4 to 1:16
• Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
• Colour addition tank with Injection Pump for dozing the dye liquor into the machine
• High efficient heat exchanger which has no heat loss to the ambient (Optional)
• HT Drain - the machine can be drained at 130° C
• Pneumatically operated front door locking / unlocking
• Human/Machine safety interlocks

• Multiple pots on single table which cover less area
• Compact arrangement of JOGSON turbo pump, heat exchanger and piping is the main key to floor space saving
• Inverter driven turbo pump for variable flow control; saves upto 40% power consumption hence more Energy Efficient
• HT drain at 130°C for oligomers elimination during polyester dyeing process
• Excellent dyeing result and levelness, reduces yarn loss
• Water level, pressure, distinctive temperature multiple safety interlock, ensure operational safety
• Modular construction system from to Up to 8 vessels with upgrading possibility

• Maximum design pressure 5 bar
• Maximum design temperature 140°C
• Heating gradient 25°C - 130°C approx at 5°C /min. (Dry Saturated steam pressure at 7 bar)
• Cooling gradient 130°C - 85°C approx at 3.5°C/min. (Cold water of 25°C at 3 bar)
