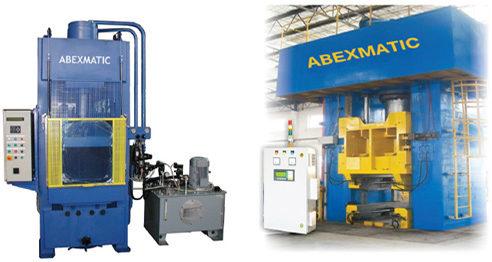

Multi Purpose Hydraulic Presses

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

These presses are suitable for drawing, coining, trimming, punching, stamping & other general operations. These presses are tted with PLC & LVDT for precision control & are highly rigid & compact in design & can be tted with die cushioning arrangement for deep drawing.

View More Details

Send Enquiry

Company Information

Abexmatic Hydraulics Pvt Ltd

Bawana, Delhi

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Multi Purpose Hydraulic presses	ABX-60	ABX-80	ABX-100	ABX-150	ABX-200	ABX-250	ABX-300	ABX-400	ABX-500	ABX-750	ABX-1000
General
Types of Press	Straight	Straight	Straight sided	Straight sided	Straight sided	Straight sided	Straight sided	4 Coloumn	4 Coloumn	4 Coloumn	4
Types of Press	sided	sided	Straight sided	Straight sided	Straight sided	Straight sided	Straight sided	4 Coloumn	4 Coloumn	4 Coloumn	Coloumn
Max. Capacity-Tons	60	80	100	150	200	250	300	400	500	750	1000
Bed Size (table) LR X FB – mm	500 x 500	500 x 500	600 x 600	600 x 600	900 x 900	900 x 900	1600 x 1300	1830 x 1524	2100 x 1900	2800 x 2000	3000 x 2350
Main Ram Stroke	300	300	350	350	400	500	500	600	600	750	800
Open day light (Bed to ram) -mm	500	500	600	600	600	900	900	1200	1200	1500	1500
Table Height (from ground) (E) -mm	800	800	800	300	300	400	400	400	500	500	650
Space Between columns (LR x FB)(H x G) -mm	500	500	600	600	900	900	900	1830 x 900	2100 x 1100	2800 x 1200	3000 x 1350
Maximum job pass width -mm (Between side bearing)	350	350	450	450	700	700	700	1630	1900	2550	2700
HYDRAULIC SYSTEM
Motor H.P.	20	25	30	50	75	75	100	75 (2Nos.)	75 (2Nos.)	125 (2Nos.)	125 H.P. (2Nos)
Type of hydraulic system used	Regenerative	do	do	do	Pre filling (by gravity)	do	do	do	do	do	do
Pump capacity ltrs/min	136/36	118/54	204/63	322/95	322/112	322/112	322/112	322/112	322/112	322/150	322/150
Hydraulic tank capacity ltrs.	500	500	800	1000	1000	1000	1000	1000	1000	1200	1200
Max operating Pressure Kg/cm	200	200	200	200	280	250	300	280	250	300	315
