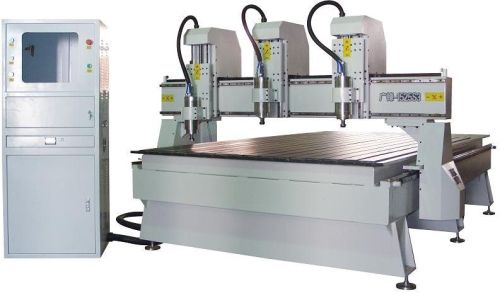

1825-3s Multi Spindle CNC Router, Packaging Type : white

multi spindle cnc router 1825-3s
Machine Introduction:
Multi independent spindles high speed CNC engraving machine adopt 2- 4 z axis( head ) high power spindles motor, specially for batch, small workpiece machining requirements of customer design, suitable for processing cupboard door, gifts and crafts,carved wood products, non-ferrous metal, EVA materials carvings and cutting in many industry products.
1. Multi spindles engraving: Multi spindles can engrave the same design at same time, greatly improves the processing speed, it is can reach severals single spindles machine’s processing efficiency , and the products with consistency and high quality.
2. Single spindles engraving: The machine can move one spindles to a side to realize single spindles engraving, this case suit for small quantity products processing or produce big board,the Max. board can engraving 1220*2440mm. Reveal human nature design, control the products cost.
3. Independent multi spindles high speed CNC engraving machine , the whole machine is made by thick wall steel structure,after welding tempering aging treatment, don’t deformation and strong rigidity. Portal type movement, the working table is fixed, can processing materials arbitrarily.
4. X Y AXIS are Taiwan AMT high precision, zero clearance square model aggravating sliding linear guide rail, and high precision special process rack, smooth operation, high precision; Furthermore Y axis adopt bilateral drive, speed, high efficiency, bearing heavy and make heavy cutting.
5. High speed CNC engraving machine adopts high power dust collector and perfect centralized lubricating system, work environment is good, the machine service life is longer.
Software function:
1. The machine can engrave any picture or design, support scanning, direct support UG, ArtCAM, Type3, CorelDraw, Proe,Ucancam, carved and other G code format generated by CAD/CAM and other softwares.
2. High speed CNC engraving machine adopts Shanghai weihong PCI control card cnc system(contact with computor), can do breakpoint renewal carving, without electricity memory function, can realize completely offline operation.
Application scope:
Wooden door and furniture decoration industry: Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs, board type furniture engraving, archaize annatto furniture engraving, solid wood art mural engraving and so on.
Wooden crafts processing: Clock frame, picture frame, calligraphy plaque, electrical counter face, sports equipment, thin aluminum board cutting and engrving.
Electronic product industry: Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting;
Instrument industry: Engraving instruments 3D surface, Appearance cutting, such as cello, violin panel and head; guita,erhu 3D surgace engraving and cutting.
EVA processing industry: EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products,glass vessel.
Product parameters:
Model
Parameters GF- Independent Multi Spindles High Speed CNC engraving machine
XYZ axis travel(can do as your requirments) 1300mm*2500mm 1500mm*2500mm 1800mm*2500mm
Table structure Industrial Aluminum profile Optional vacuum adsorption
Max.dull speed 30000mm/min
Max. processing speed 15000mm/min
Repeated localed precision +-0.02mm
System resolution +-0.0025mm
Spindles power domestic water cooled spindles 3kw*2 sets
Optional domestic air cooled spindles 3.5kw*2 sets
Spindles speed 6000-24000rpm 6000-18000rpm
Tools handle diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm
Drive system 3 phase stepper motor drive
Optional 3 phase AC servomortor drive
Control system Shanghai Weihong PCI control system(contact with computor)
Transmission
System X Y AXIS Taiwan AMT high precision, zero clearance square model aggravating sliding linear guide rail
Z AXSI Taiwan AMT linear guider rail+ ball screw
Frequency changer Taiwan Delta 3.7kw
Software support TYPE3、UCANCAM、ARTCAM、MASTERCAM、UG、AutoCAD
Adsorption device Water recycled vacuum pump 5.5kw, Adsorption quantity: 230m³/h
Dust collector Double bag vertical dust collector 3kw
Weight 1800kg
Working voltage AC380V/50HZ
