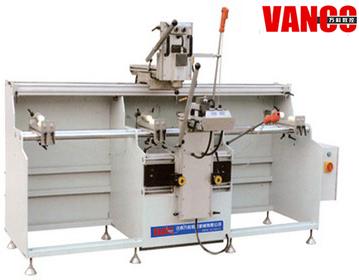

Multi Spindle Copy Routing Machine

We offer multi spindle copy routing machine lxf2ⅱ-1900*125
function:
1. Compact structure with attractive appearance.
2. Air controls ensures safety working. Easy replacement of the copy-routing plate, large useful scope, high efficiency and convenient operation achieve the continuous processing and safety operation.
3. There are two head on both horizontal and vertical directions, which can achieve two sides continuous procession.
Features:
1. Used for drilling, grooving and outfall making of aluminum door and window and curtain wall.
2. Compact structure with attractive appearance.
3. Pneumatic device controls the profile clamping device and motor starting which is safe and reliable.
4. Large scope of machine head horizontal movement.
5. Easy adjustment and replacement of the copy-routing plate.
6. Superpower frequency converter electric main spindle with wide range application can process continuously which is easy operation, high efficiency and safe.
7. possess two power heads in horizontal and vertical direction; it can finish two machining in one time.
Technical parameters:
power supply: 380v220v50hz
operation air pressure: 0.5~0.8mpa
air consumption: 20lmin
input power: 2.2kw
motor revolving speed: 0~12000rmin*2sets
copy range: 1900*125
process roughness: ra12.5µm
milling cutter diameter: φ5mm, φ8mm
profile processing section：
upper plane: 230mm (w)*150~210mm (h) (it is depend on the length of knife)
side plane: 230mm (w)*135mm (h)
dimension:
3300mm (including cutters in right and left)*1400mm*1700mm (l*w*h)
2510mm (not including cutters in right and left)*1400mm*1700mm (l*w*h).
