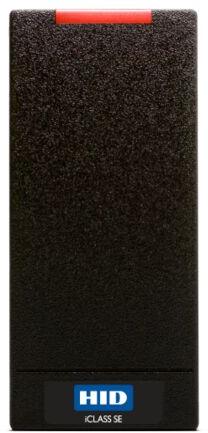

HID iCLASS SE R10 is an advanced multi-technology access card reader from HID Global. This access card reader is specifically designed for doors that require mullion style mounting. As the iCLASS SE platform has a built-in feature of intelligent power management the HID iCLASS Se R10 readers consume 59% lesser power. It supports various high-frequency ISO15693 and ISO 14443A/B credential technologies. The iCLASS SE R10 is very flexible regarding configuration as it can be configured to custom specifications with various interpreters like 13.56MHz & 125 kHz, controller communications, hardware, security.

The HID iCLASS SE R10 reader is a part of the award-winning iCLASS SE platform, making it highly adaptable and interoperable. They are designed to support multiple credentials factors such as security fobs, Keycards & mobile credentials. HID iCLASS SE R10 readers are interoperable with an expanding range of technologies such as Mobile credentials, iCLASS SE, Standard iCLASS, iCLASS Seos, Mifare Classic, and Mifare Desfare.

HID iCLASS SE R10 Standard features:

Adaptable – It features a highly interoperable system with a growing range of technologies (iCLASS Seos , iCLASS SE, iCLASS, MIFARE Classic, MIFARE DESFireEV1) and form factors including mobile devices.

Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data.

Standardized Communications (OSDP) –he iCLASS SE RK40 uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller
.

Model Name	R10	R15	R40	RK40	R90
Base Part Number	900N	910N	920N	921N	940N
Typical Read Range1	13.56 MHz Single Technology ID-1 Cards – SIO Data Model
	iCLASS Seos: 2.4″ (6 cm) iCLASS: 3.6″ (9 cm) MIFARE Classic: 2.4″ (6 cm) MIFARE DESFire EV1: 2.4″ (6 cm)	iCLASS Seos: 2.4″ (6 cm) iCLASS: 3.6″ (9 cm) MIFARE Classic: 2.4″ (6 cm) MIFARE DESFire EV1: 2.4″ (6 cm)	iCLASS Seos: 3.2″ (8 cm) iCLASS: 5.2″ (13 cm) MIFARE Classic: 3.9″ (10 cm) MIFARE DESFire EV1: 3.2″ (8 cm)	iCLASS Seos: 2.0″ (5 cm) iCLASS: 5.5″ (14 cm) MIFARE Classic: 5.1″ (13 cm) MIFARE DESFire EV1: 2.0″ (5 cm)	iCLASS Seos: 5.9″ (15 cm) iCLASS: 14.2″ (36 cm) MIFARE Classic: 9.4″ (24 cm) MIFARE DESFire EV1: 5.9″ (15 cm)
	13.56 MHz Single Technology Tags/Fobs – SIO data Model
	iCLASS: 1.6″ (4 cm) MIFARE Classic: 1.2″ (3 cm)	iCLASS: 1.6″ (4 cm) MIFARE Classic: 1.2″ (3 cm)	iCLASS: 2.8″ (7 cm) MIFARE Classic: 2.0″ (5 cm)	iCLASS: 3.1″ (8 cm) MIFARE Classic: 2.0″ (5 cm)	iCLASS: 7.5″ (19 cm) MIFARE Classic: 3.1″ (8 cm)
Mounting	Mini-Mullion Size; physically HID’s smallest iCLASS® readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface	Mullion Size; physically HID’s second smallest iCLASS readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface	Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing	Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing	Mounts on any standard back boxes or any flat surface
Color	Black
Keypad	No			Yes (4×3)	No
Dimensions	1.9″ x 4.1″ x 0.9″ 4.8 cm x 10.3 cm x 2.3 cm	1.9″ x 6.0″ x 0.9″ 4.8 cm x 15.3 cm x 2.3 cm	3.3″ x 4.8″ x 1.0″ 8.4 cm x 12.2 cm x 2.4 cm	3.3″ x 4.8″ x 1.1″ 8.5 cm x 12.2 cm x 2.8 cm	13.1″ x 13.1″ x 1.55″ 33.3cm x 33.3cm x 3.9cm
Product Weight (Pigtail)	3.9 oz (113g)	5.3 oz (151g)	7.7 oz (220g)	9.0 oz (256g)	N/A
Product Weight (Terminal Strip)	2.9 oz (84g)	4.2 oz (120g)	7.5 oz (215g)	8.0oz (226g)	4lb 1oz (1844g)
Operating Voltage Range	5-16 VDC			5-16 VDC	12 VDC or 24 VDC
Current Draw –Standard Power Mode2 (mA)	60 @ 16V	60 @ 16V	65 @ 16V	85 @ 16V	110 @ 12V
Current Draw –Intelligent PowerManagement (IPM) Mode2 (mA)	35 @ 16V	35 @ 16V	40 @ 16V	60 @ 16V	30 @ 12V
Peak Current Draw – Standard Power or IPM Mode2 (mA)	200 @ 16V	200 @ 16V	200 @ 16V	220 @ 16V	300 @ 12V
NSC3 PowerConsumption –Standard Power Mode	1.0 @ 16V	1.0 @ 16V	1.0 @ 16V	1.4 @ 16V	1.3 @ 12V
NSC3 PowerConsumption – w/ IPM	0.6 @ 16V	0.6 @ 16V	0.6 @ 16V	1 @ 16V	.4 @ 12V
Operating Temperature	-31º to 150º F (-35º to 65º C)
Storage Temperature	-67º to 185º F (-55º to 85º C)
Operating Humidity	5% to 95% relative humidity non-condensing
Environmental Rating	Indoor/Outdoor IP55; IP65 if installed with optional gasket				IP65
Transmit Frequency	13.56 MHz
13.56 MHz Card Compatibility	Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) – MIFARE Classic and MIFARE DESFire EV1 custom data models – standard iCLASS Access Control Application (order with Standard interpreter) – ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN – FeliCa™4 CSN, CEPAS4 CSN or CAN
Communications	Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
Panel Connection	Pigtail or Terminal Strip				Terminal Strip
Certifications	UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4
Cryto ProcessorHardware CommonCriteria Rating	EAL5+
Patents	www.hidglobal.com/patents
Housing Material	UL94 Polycarbonate
Manufactured with % of recycled content (Pigtail)	10.5%	11.0%	10.5%	10.9%	N/A
Manufactured with % of recycled content (Terminal Strip)	11.0%	11.5%	11.0%	12.4%	11.00%
UL Ref Number	R10E	R15E	R40E	RK40E	R90E
Warranty	Limited Lifetime
