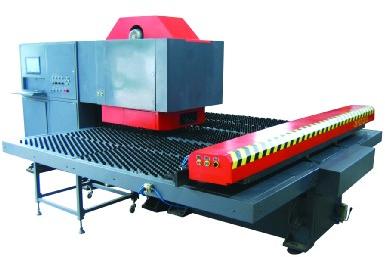

Multi-tools CNC Turret Press Machine

CT Series multi-mode bit CNC turret punch power integrated washing equipment, widely used in mechanical, electrical, instrumentation, screen, hardware, all kinds of metal plate, cabinet stamping industries.
The product by the control system, turret punch press and two-axis component feeder. Turret and the two-axis feed by servo motor drive, high-precision ball screw drive, linear motion bearing lead, sheet metal pneumatic positioning. Turret rotation positioning by automatically locking, stroke according to the procedure set up automatic adjustment with standard die, a filling. Process by automatically nesting, automatic feed, quick die, Stamping, easy and quick change die, stamping process is continuous. The model is very convenient place to replace the mold, the mold can establish the corresponding library to achieve a variety of graphics, a variety of thickness of the stamping process. This product is for; quantity and variety, pass a complex board processing has unique advantages, is the modern press processing enterprises to expand processing areas, rich in processing capacity, improve product quality, increase the economic benefits of optimal equipment.
CT Series multi-mode bit CNC turret punch developed by our company with independent intellectual property rights. This product processing speed CNC system, programming convenience, the program stable and reliable. With 40 inputs, 24 outputs of the IO interfaces to meet the processing needs of various industries, with a USB interface with other systems to facilitate sharing of resources. The numerical control system enables a real-time control systems with high resource utilization, friendly and intuitive interface, easy to use. NC code can be programmed using ISO standards, but also the CAD will be available PC graphics AUTOCAD (DXF format or DWG format), automatic generation of processing procedures, and complete the processing function, in order to achieve truly automatic processing and program.
Main functions and features
Real-time control system, the interface intuitive and friendly, easy to use
USB interface, through the loading process can share resources
status display (mode of operation, machine state, the workpiece coordinate, command display)
PC automatic programming function, automatically generate processing
ISO standard NC code programming
has a program edit, modify, save function
code with multi-nested, circulation and other ancillary functions
Fault self-diagnosis display
code execution, form validation function
Advanced parameter setting functions
punch software control start and stop, single, continuous operation
manual adjustment of three ways
punching, sheet counting and counting clear function
simple sheet orientation
automatically return to the starting point feature
optional second positioning function
soft-limit function, super-way automatic error
second positioning work with automatic functions to clamp
The IO port independent detection
