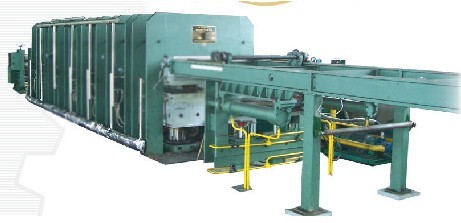

Multi-unit Press, Vulcanizer, Curing Press

We offer multi-unit press/vulcanizer/curing press.
Model performance parameters xlb-1800x xlb-1800x xlb-1600x xlb-1600x xlb-1600x xlb-1400x xlb-1400x xlb-1400x xlb-1100x xlb-1300x
12000*2 10000*2 10000*2 10000*1 8500*1 10000*1 8000x2 5700*2 5700*2 4000*2
heating plate size (mm) 1800*12000 1800*10000 1600*10000 1600*10000 1600*8500 1400*10000 1400*8000 1400*5700 1100*5700 1300*4000
nominal total pressure (mn) 74 72 56 64 47.6 49 34 25 17.55 14.56
heating plate unit pressure (mpa) 3.4 4 3.5 4 3.5 3.5 3.1 3.13 2.8 2.8
ram diameter (mm) 500 500 450 500 500 450 400 360 500 500
ram qty (pc) 18 18 18 18 14 18 16 10 5 4
max. Ram stroke (mm) 400 300 400 300 300 300 400 400 520 250
clamping force (mn) 1.2 1.5 1.2 1.2 0.6 0.9 1 0.72 0.5 0.5
tensioning force (mn) 1.1 1.2 1.1 1 0.5 0.8 0.9 0.6 0.4 0.4
steam pressure (mpa) 0.63 0.6-0.8 0.63 0.6-0.8 0.63 0.63 0.63 0.63 0.63 0.63
cooling water pressure (mpa) 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
control form plc plc plc plc plc plc plc plc plc plc
overall dimension of main machine length (mm) 12000 1000 10000 10000 8500 10000 8000 5700 5700 4000
width (mm ) 2900 2740 2660 2560 2980 2400 2400 2350 1800 2050
height ( mm ) 3930 3660 4120 3520 3325 3580 3880 4170 3305 2795
