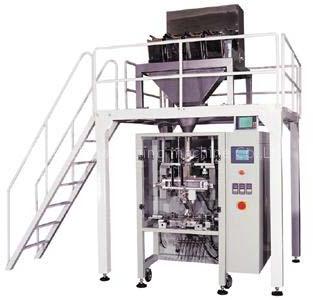

Multi Weigher Form Fill Seal Machines

Listing ID #1397556

We offer to the clients Multi Weigher Form Fill Seal Machines, which are manufactured using high grade components. These Multi Weigher Form Fill Seal Machines are known for their sturdy construction, low maintenance cost and high output speed. All the parts attached in the machine are manufactured using stainless steel.
Attributes

• Servo driven draw down belts
• Servo Motor driven high speed sealing Jaws
• PLC control with HMI
• Photo cell print registration
• Cut off blades for separating sachet from film web housed in horizontal die for maximum efficiency
• Tool kit and Operator Manual supplied with the machine
• Front safety guard and access door electrically interlocked (Optional)
• Pneumatic actuated draw down belts, driven by Servo Motor
• Accurate sealing die temperature control and fully controllable die pressure
• Detachable Perspex and stainless steel guards. Easy for fault finding.
• Comprehensive push button control panel with cycle counter
• Can be adapted to seal unsupported films using impulse sealing system
• In-built self-diagnostic features
• Hourly production data
• Overload protection
• P.C. Uplink facility (Optional)
• Password protection setting

Technical Specifications

• Filling System
  The machine can be fitted with any one of the following fillers.10 Head computerized combination weigher has following features:

  • Micro-processor controlled for easy set-up and operation
  • Stepper motor drives for all actuators
  • No Pneumatics is needed
  • Highly accurate
  • Self-diagnostic
  • No tools required for maintenance
  • Stainless steel contact parts throughout. IP 65 rated
  • Machine setting is programmable
  • Weighing accuracy 0.4 to 1.0 gram
  • Product codes up to 99
  • Stepper motor drives control both the weighing and intermediate buckets, which can be customized as per the desired speed and product volume
  • 12 Head Combination weigher can be given as an option
• Packaging Materials

  • Laminated films up to maximum of 500 gauges (125 micron)
  • Pure unsupported polythene film used with special impulse sealing equipment
