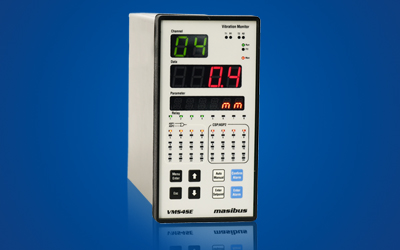

Multichannel Vibration Monitor

Listing ID #3195500

Vibration Transmitter VMS4SE is an upgrade of model VMS4S; additional capabilities have been added by way of no of channels, multi-serial ports, Ethernet port, scanning speed and alphanumeric display. VMS4SE accepts input directly from ICP type Accelerometer, processes the signal and gives analog output in the form of standard current or voltage to suit different applications in Power, Cement and Metal industries; Optionally VMS4SE also accepts Universal Analog input to serve various application.
Modular and Expandable
Vibration Transmitter VMS4SE is modular in architecture and Expandable, IO slots can accommodate a mix of Vibration Input, Analog Input, Open collector output or Relay output. All field inputs are wired by Pre-Fab cables direct into panel terminals.
Configuration
Vibration Transmitter VMS4SE is used for plan wide predictive maintenance. It takes up online vibration and provides data though software. It is configured using the mVSCAN software which is very user friendly; the unit can also be edited by front keyboard and display. The unit has numeric and alpha-numeric displays for value and tag display, AlarmTrip and control status are displayed by discrete LEDs on front fascia.
Communication
Vibration Transmitter VMS4SE comes with one RS-485 port as a standard, a second RS-485 port & an Ethernet Port are options to enhance the communication capabilities of the unit and for direct interface with PLC, DCS or SCADA
