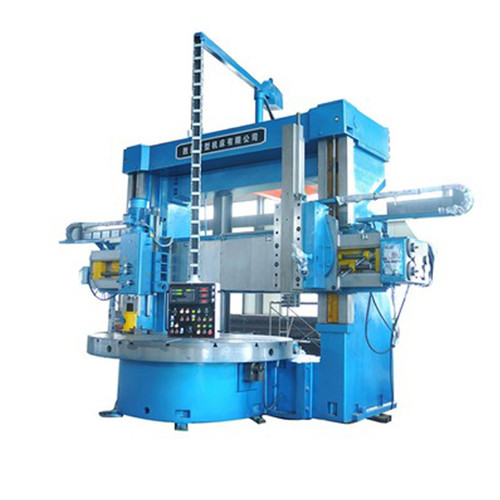

Multifunctional CNC Vertical Boring Mill Machine

Multifunctional cnc vertical boring mill machine adopts frame-type gantry structure with double column and connection beam. Both column and beam adopt high strength and low stress cast iron parts with material toughness, proper annealing treatment, plus box-type structure design, high rigid body structure, to guarantee mechanical features of heavy cutting resistance ability and high stability.
Multifunctional cnc vertical boring mill machine can complete the process of rough and finish turning inside and outside cylinder, inside  and outside cone surface, plane surface, the circular arc surface and grooving.
Technical specification of Multifunctional cnc vertical boring mill machine C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 315036504150 mm
3 Maximum Weight of workpiece 5080100 t
4 Table diameter 45005750 mm
5 Speed range of table 0.5-50rmin
6 Maximum torque 1 60KNmin
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm
Parts of Multifunctional cnc vertical boring mill machine
