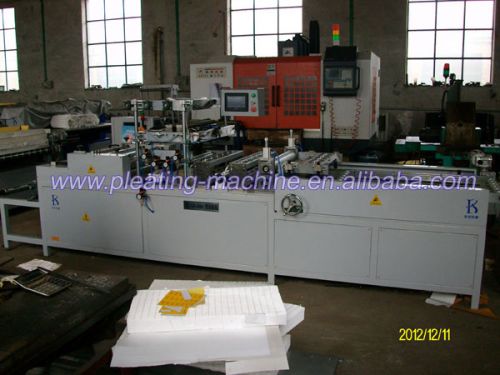

Multifunctional Mini Pleating Machine, Brand Name : kc

Mini-700 multifunctional mini pleating machine line.
general description :mini pleating machine is used in the pleating and gluing of fiber glass filter media,(do the gluing of polyester spun bonded non-woven filter media and so on ),to produce high efficiency air filters.easy operation and high efficiency.
technical parameters
1, the pleating mechanism: 700
(1) the maximum width: 700mm
(2)pleating height : 20-95mm (to be customized rachis)
(3) the pleating speed: 2-15 m min stepless adjustable
(4) the power supply voltage: 380v-50hz
(5) motor power: 1.5kw
(6) working pressure: 0.6mpa
(7) the weight of the machine: 950kg
2,gluing mechanism
sol machine adopts huang shang glue machine as the main sol host
(1) the maximum width: 700mm
(2)pleating adjustable range: 20~95mm (to be customized rachis)
(3) the production speed: 2~15mmin
(4) strip interval: 25.4mm
(5) strip number: 2 x 24
(6) the power supply voltage: 380v50hz
(7) working pressure: 0.6mpa.
