Contact SupplierProduct to be filled in VFFS With Multihead Weigher Machine
This model is suitable for packing uneven shaped, light weight, high value free flow or entangled products namely potato chips, banana chips, dry fruits, pasta, detergents, pulses, tea, coffee beans, toffees, grocery products, tablets, cashews, snacks, fresh or frozen foods, hole spices, sugar, salt hardware items etc

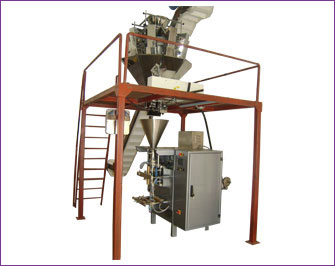

Description of VFFS With Multihead Weigher Machine
This is a vertical form, fill and seal machine for packing all types of light weight multiple products. This machine shall make center seal pouches.Â
This model is mainly designed to pack 10 gm to 500 gm product packing. Maximum reel width can be used in this model is 450 mm open width with 76 mm core ID.Â
Pouch length is controlled by electromagnetic clutch brake and a pair of timer belts which is synchronized with PLC and print registration sensor. Servo controlled drive for pouch length is also available.
Unprinted packing material can also be used in this machine.
VFFS With Multihead Weigher Machine output
Maximum speed up to 50 packs per minute depending on properties of the product and accuracy of filling weight
Filling Range
10 gm to 500 gm
Pouch Range
Pouch Width : Minimum 75 mm to Maximum 200 mm
Pouch Length : Minimum 100 mm to Maximum 300 mm
Packing Material
Machine is designed for most types of Heat Sealable Laminate up to maximum of 300 gauge
Machine control
Electrical Panel with PLC and HMI
Main drive
Both horizontal and vertical sealers will be pneumatically actuated, Pulling will be with mechanical clutch system, servo models are also available
Filling system
Multihead combination weigher 12/14 head of hidream/multiweigh/ishida/yamato make as per suitable for the product
Electrical Data
Power supply: 440 VAC, 3 phase with neutral and ground connected
Motor Drive
1 Hp, 440 VAC, 50 Hz, 3 phase with VFD
Air
275 Liter Per Min at 6kg/CM2
Heaters
250 Watt or 300 Watt X 3 heaters
Temperature controller
Omron or Selectron or Delta make PID controller
Photocell control
Omron or datalogic make
Length X width of machine
2600 mm X 2350 mm
Height of machine
3550 mm with weigher
Nett Weight of machine
935 Kilogram
Optional arrangements
Â
We are leading VFFS With Multihead Weigher Machine manufacturer and supplier in Navi Mumbai, India, Contact us to know the best price of the VFFS With Multihead Weigher Machine
