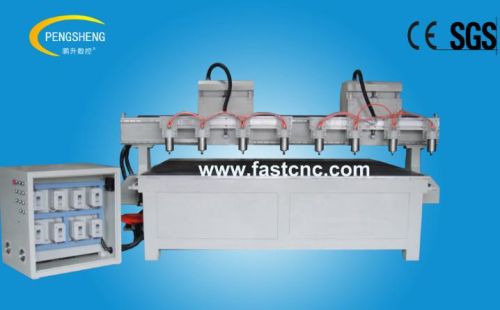

Multiheads CNC Router PC-2040e, Brand Name : Penn

We are offering multiheads cnc router pc-2040e.
Feature:
as the request of furniture manufacturer penn researched and developed mutiheads cnc router, this machine with 8 heads,x.y rack gear transmission, multi-head cnc router help customers overcome the difficulty who want to do batch production. 1.whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed. 2. Three spindles can be working synchronously as well as separately. 3.the machine adopts gantry movement,it can process any kinds of materials freely. 4. Three axes adopt imported high precision taiwan square orbit;x and y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;z axis adopts taiwan ball screw,with high precision and long life time. 5. Well compatibility:cadcam designing software e.g. type3artcamcastmatewentai etc. 6. Has the function of forecasting process time. 7.advanced design of the machine make sure strong cutting and guarantee the engraving precision.
technical parameter:
model pc-2040e
x.y working area 2000mm*4000mm for single spindle working separately
200mm*4000mm for both spindle working synchronously
z working area 200mm
resolution 0.02mm
x,y structure rack and pinion transmission
z structure taiwan ball screw
max speed 20mmin
spindle power 1.5kw2.2kw3kw
spindle rotating speed 0-24000rmin
cooling mode water cooling
working voltage ac220v5060 hz ,2ph
drive motor stepper
command g code*.u00*.mmg*plt
operating system nc studio
diameter of cutter 3.175--8
work-holding by clamp
net weight 700kg
applicable industries:wood processing:processing of various furniture such as door,window,cabinet,craft wood door,
screen and so on.advertisement:engraving and cutting various labels and number plate.art craft:engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:wood,aluminum board,plastic,density board,wave board,pvc,acrylic,crystal,light marble and other
nonmetal materals and light metal materials.
