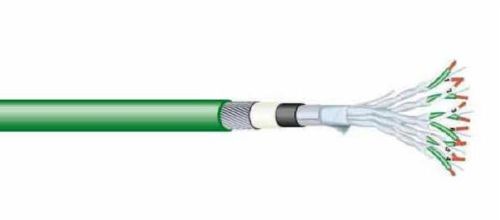

MULTIPAIR THERMOCOUPLE

Can be used in cable tray or conduit to connect different types of thermocouple in industrial process controls, refineries, oil and gas plants.

Temperature range

-20 °C to +80 °C (for general use);
-40 °C to +90 °C (on request).

Minimum bending radius

Not armoured type:
12 times the outer diameter (for conductors class 1 and class 2);
10 times the outer diameter (for conductors class 5).
Armoured type:
15 times the outer diameter.

Calibration and colours according to BS – DIN – NF – UNI.
Stranded conductors.
Galvanized steel wire braid (GSWB) or galvanized steel tape armour (GSTA).
Sheath materials can be provided for excellent water, oil, hydrocarbons, UV resistance or other special performance.

Cable construction Conductors

Solid alloy.

Calibration

ANSI MC 96.1 or IEC 60584-3.

Insulation

PVC, PE, XLPE or LSZH thermoplastic material.

Twisting

The insulated cores shall be twisted in pairs/triads for a good reduction of the electromagnetic noise.

Individual screen

Aluminium/polyester tape, coverage >100%, aluminium in contact with tinned copper drain wire.

Cabling

The screened pairs are cabled with suitable non hygroscopic fillers (when necessary) and wrapped with polyester tape if required.

Overall screen

Aluminium/polyester tape, coverage >100%, aluminium in contact with tinned copper drain wire.

Inner sheath

PE, PVC or LSZH thermoplastic material.

Armour

Single layer of galvanized steel wires (SWA).

Outer sheath

PVC or LSZH thermoplastic material.
