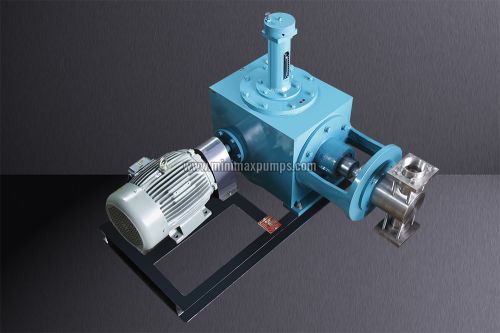

Up To 400 kg/cm2 Multiple Head Metering Pump, For Industrial

We are one of the proficient names, engaged in designing and developing Multiple Head Metering Pump having remarkable attributes. Our Multiple Head Metering Pump is designed to meet pumping requirements in different industries. Further, Multiple Head Metering Pump is backed with several attributes such as longer service life, efficient performance and low operating cost.

Specifications

• High flow rates of 0-10,000 liters/hr
• High pressures of 400 Kg/sq. cm
• Reproducibility (Repeatability) better than +/-2.5% of set point
• Easily compatible with most of the fluids
• Positive return of plunger and variable stroke mechanism allows linear relationship between control stroke setting and stroke length
• Low NPSHR requirement
• Steady state metering accuracy of +/-1 % of pump output
• Single setting of stroke from 10% - 100% by interlocking mechanism
• Simplex and multiplex arrangements of pumps with common drive
• Heating or cooling jackets for liquid head is also available for highly viscous at room temperature liquid

Contact Materials (Wetted Parts)

• AISI 304
• AISI 316
• Monel
• Alloy 20
• Hast alloy B
• Polypropylene
• Hast alloy C
• Titanium
• GFT
