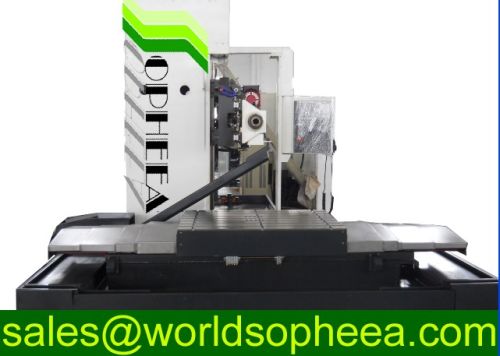

Mutifunction Horizontal CNC Deep Hole Drilling Machine

MOQ1 Set(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

ZSY10-1007 Machine capacility machine hole diameter: 3-30mm(35mm for optinal) machine depth(z): 1000mm travel table horizontal(x): 1000mm main spindle vertical: 700mm ram(w): 300mm Machine....

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ZSY10-1007
Machine capacility
machine hole diameter: 3-30mm(35mm for optinal)
machine depth(z): 1000mm
travel table horizontal(x): 1000mm
main spindle vertical: 700mm
ram(w): 300mm
Machine Speed
max spindle speed: 6000r/min
Power
spindle motor: 7.5kw
X axis motor: 22 N.m
Y axis motor: 22 N.m
Z axis motor: 12 N.m
machine total motor: 22KW
Coolant system
max coolant pressure: 110kg/cm2
max rate of flow: 80L/min
Dimension and Weight
table space: 1200 x900 mm
max loading : 5T
floor space: 5300 x 4300mm
machine height: 2700mm
machine weight: 11 T
CNC Equipment: Fanuc System
