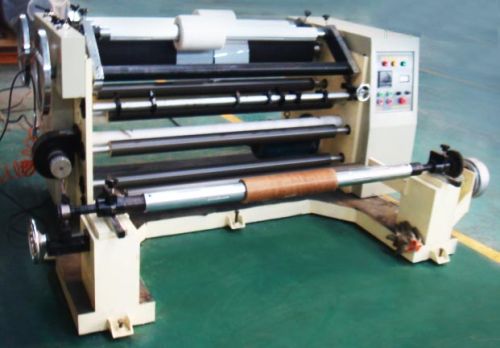

Mylar Film Slitting Machine, Brand Name : Kiande

₹ 1.80 Lakh / Set

MOQ1 Set(s)
Brand NameKiande
Applicationused for cutting mylar film from big size into small size
Total Carbohydrateone year warranty
After-Sales Service Providedyes
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameKiande
Applicationused for cutting mylar film from big size into small size
Total Carbohydrateone year warranty
After-Sales Service Providedyes
Country of OriginChina
Model NumberKDEQ-01-007

Busbar polyester film cutting machine, mylar film slitting machine
busbar polyester film cutting machine is used to cut the mylar film as the required width and length. Automatic feed-in, cutting and feed-out increase the working efficiency and accuracy.
1. The machine’s parameter is below:
1.1 max. Take-up diameter: 400mm
1.2 max. Unwinding diameter: 500mm
1.3 effective slitting width: 20-1000mm
1.4 slitting speed: 0-400mmin
1.5 winding paper: 3 inch inflatable shaft
1.6 total power: 4.5 kw
1.7 effective slitting length: 1600mm
2. Configuration requirements:
2.1 adopt 3kw motor, frequency converter control;
2.2 photoelectric rectification: 1 set (optional);
2.3 surgical knife: 15 sets;
2.4 magnetic particle controller: 1 piece 5kg
2.5 automatic length meter: 1 piece
2.6 scroll: 1 set 3 inch inflatable shaft
2.7 take-up reel: 2 sets 3 inch inflatable shaft
2.8 frequency converter: 1 set 3kw
