Gas Chromatography Machine

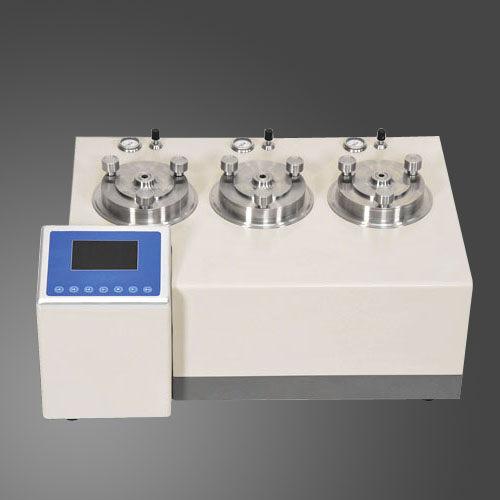

We are offering n 530 gas permeation analyzer.
specifications
measuring range: 0.02 ~ 50000 cm3/m2 • day • 0.1mpa (through the expansion of volume cap can test 600000 cm3/m2 • day • 0.1mpa) measurement accuracy: 0.01cm3/m2 • day • 0.1mpa temperature range: 15 ~ 45 ℃ (standard temperature of 23 ℃) temperature accuracy: ± 0.01 ℃
vacuum accuracy: 0.1pa test pressure:-0.1mpa ~ +0.1 mpa test gas: o2, co2, n2 and other gases air pressure: 0.1mpa ~ 0.8mpa specimen size: φ80mm, through an area of 50.24 cm2 sample: 3(extension up to more pieces)
carrier gas interface: 1 / 8 inch
sample thickness: ≤ 2mm power: ac 220v /50hz
instrument weigh : 75 kg.
gloss weight: 90 kg.
dimension : 80 cm×56 cm×40 cm
features
1. Computer automatically control three chambers of testing ,can test different samples, configuration three independent sensors, each chamber can be set different temperatures. First creating positive and negative pressure dual-mode testing, leading international standard.
2.the sample can be tested by single chamber, or double chambers or three chambers .
3. Seperately show the curve of transmission, pressure, pressure value and temperature.
4. High or low levels of barrier test, repeat excellent performance.
5. The international advanced electromagnetic process step temperature control technology, ease lifting the temperature, variable temperature adjustable-rate, temperature control accuracy of ± 0.01 ℃ range.
6. High and low resistance ,two kinds of test mode7. Excellent test reproducibility.
8. An excellent environmental adaptability, no special requirements on the environment.
9. Real-time display of each point transmission, through the transmittance curve, can understand the testing process.
10. The curves of each chamber’s temperature, humidity, weight, and transmission display independently, continous to display four- groups-curve, can monitor the interaction of parameters at the same time.
11. Software interface is simple and easy to operate, automatically test.
12. Overpressure protection13. Software interface is simple and easy to operate, automatically save the test report can be printed and other parameters and the transmittance curve of the report.
14. Optional pairs of air humidity controlling devices, more precise of
controlling wet;
15. Calibration method of standard film
