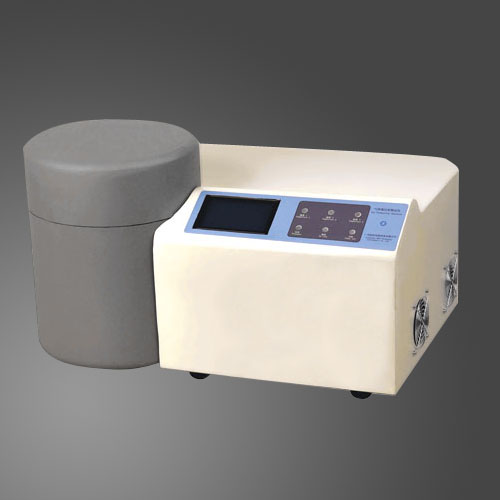

N500 Gas Permeation Tester

Specifications
measuring range: 0.02~5000 cm3/m2 .day.0.1mpa
0.2~50000 cm3/m2 .day.0.1mpa(by use expansion the mode)
measuring accuracy:0.01cm3/m2.day.0.1mpa
testing temperature range: 15℃~45℃,
temperature precision: ±0.1℃
resolution ratio: 0.1pa
vacuum: ＜20pa
carried gas inlet:1/8 inch
sample thickness: ≤2mm
dimension: 700(l)mm×520(w)mm×380(h)mm
power supply： ac220 v/50hz
sample area: φ80mm, transmission area 50.24cm2,(no stipulate for area in international)
features
1, automatic test, user friendly, non-maintenance design;
2. Two test mode of high and low, width measurement range, high precision ;
3. Superior components, accurate test result, high stability;
4. Automatically increase and decrease temperature, no special requirements to the environment;
5. All parameters display on the real time;
7. Multi-level security protection design, excellent performance , and sustainable operation;
8. With ce,ul,fcc certifications;
9.versatile language support.
