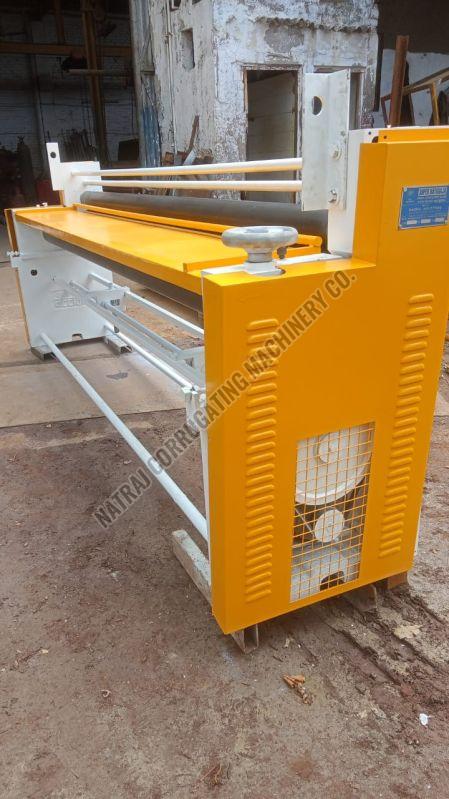

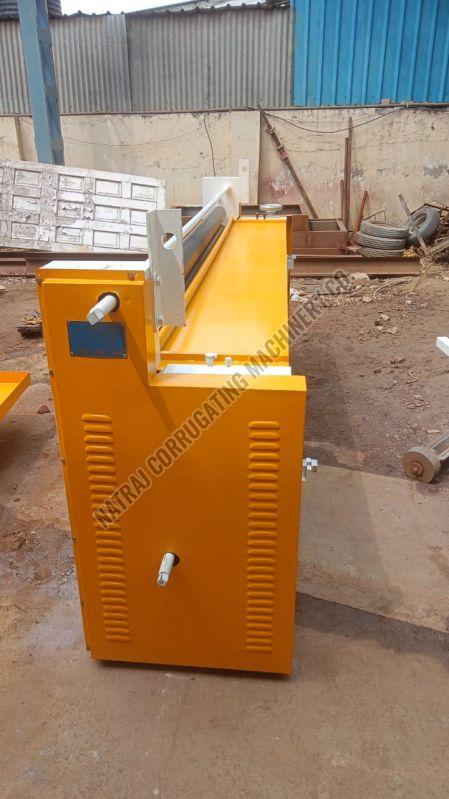

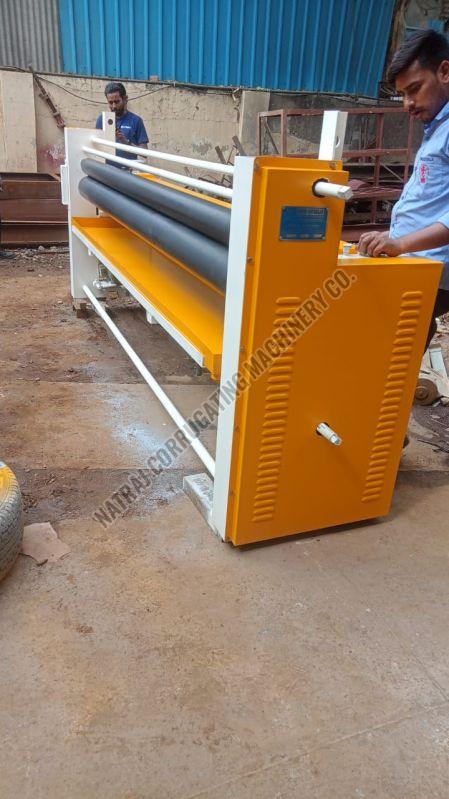

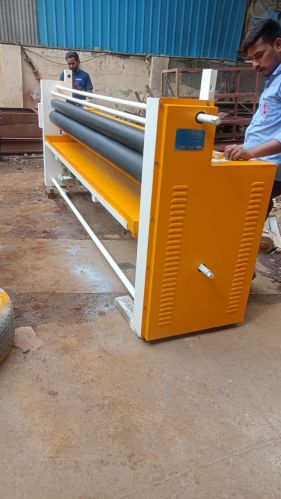

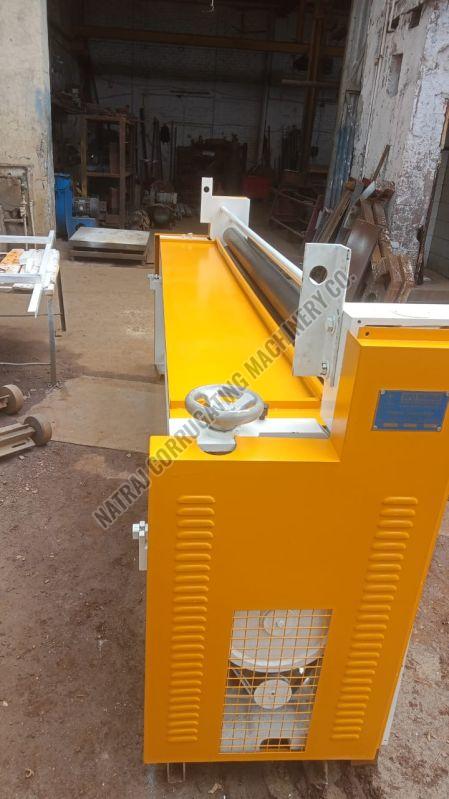

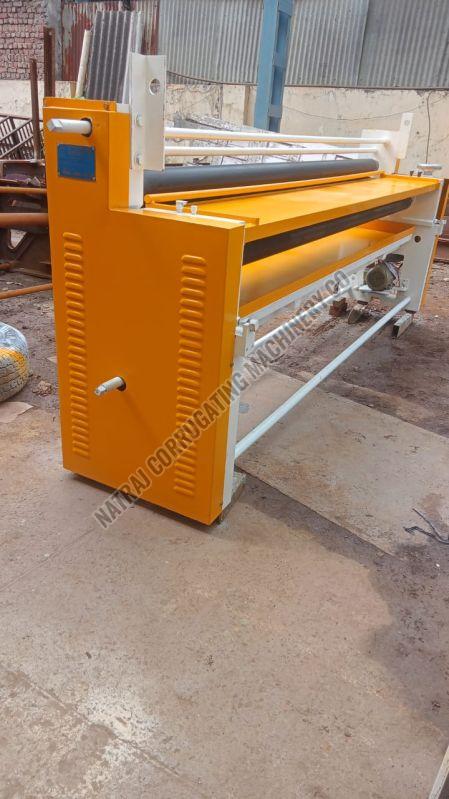

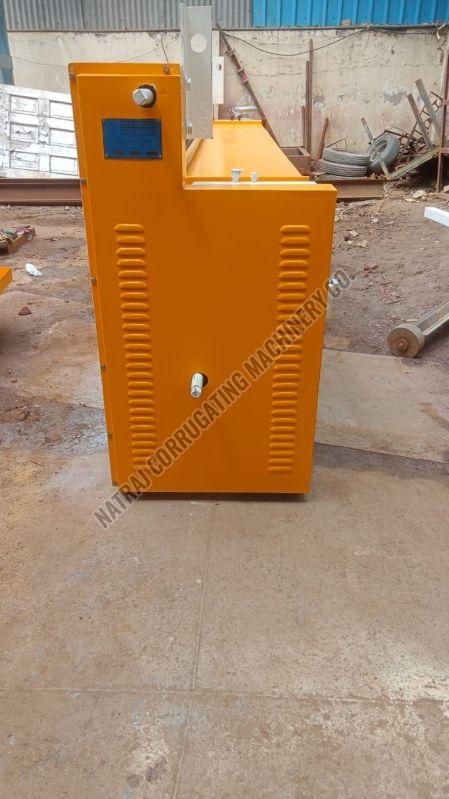

Nagpal Natraja 4 Roller Sheet Pasting Machine

₹ 2.85 Lakh - ₹ 3.50 Lakh / piece

MOQ1 Set(s)
Driven TypeElectric
Automatic GradeSemi Automatic
Brand NameNagpal Natraja
Power1-5kw
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

Company Information

Bamni Khera, Palwal, Haryana

4.6/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 06ACJPN8265D1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power1-5kw
Brand NameNagpal Natraja
ConditionNew
Driven TypeElectric
Total Carbohydrate1 YEAR
Automatic GradeSemi Automatic
Number Of FlowerCorrugated Sheet Pasting Machine
Availability1000-2000kg
Country of Origin220V
Warrenty1year
NameNatraja 4 roller sheet pasting
Tile TypeMANUAL
Usage/ApplicationBOARD TO BOARD PASTING MACHINE
Product NameNATRAJA 4 ROLLER SHEET PASTING MACHINE
Capacity1-1.5 TON
After-Sales Service ProvidedYES BUT CHARGEABLE

This machine is designed for applying glue to the tips of 2-ply corrugated board with high precision, efficiency, and minimal glue waste. It is especially suited for high-speed, high-volume corrugated sheet production where clean pasting and quick drying are critical.

\r\rKey Features:\r

\r
4 High-Quality Rollers:
\r
- \r
  3 Ebonite Rollers and 1 Hard Chrome Roller for long life and precise application.
  \r
- \r
  All rollers are precision-ground for smooth and even gum coating.
  \r
\r
\r
Glue Circulation System:
Ensures continuous movement of gum, preventing drying or clogging during operation.
\r
\r
Stainless Steel Gum Tray:
Rust-resistant S.S. tray for long-term durability and easy cleaning.
\r
\r
Single Side Control System:
Simplifies the setup process—quick and even pressure setting of gum and pressure rollers from one side only.
Also includes single-side lifting control for the gum tray.
\r
\r
Efficient Gum Transfer:
Precise glue application allows faster drying and reduces liner impression on the top sheet, improving product quality.
\r
\r
Energy Efficient Design:
Reduces glue usage by up to 40%, saving on material costs.
\r

\r\rTechnical Specifications:\r

\r\r\rParameterDetails\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r

Power	4 + 4 kW
Voltage	380V, 50 Hz
Dimensions (L×W×H)	6.5 × 1.5 × 1.5 meters
Weight	Approx. 3.8 Tons

This 4-Roller Corrugated Sheet Pasting Machine is a highly demanded solution in modern corrugated box production, offering superior glue control, durability, and ease of operation.
