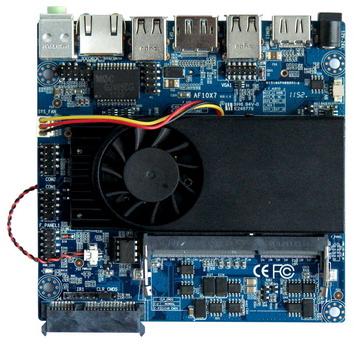

Nano Itx Industrial Motherboard

We are offetring Nano Itx Industrial Motherboard,
CPU AMD eOntario T56N, dual core 1.6G,18W, M1 FCH processor
Chipset AMD Husdon
Memory 1 * SO DIMM DDR3 8001066MHz of memory up to 4GB
Graphics •Integrated AMD HD Graphics 6310 with UVD3.0 Decode, support DirectX11, 1080i, 1080P and H.264. VC-1, MPEG-G etc high definition player.
Audio Realtek ALC883, support 245.17.1 HD sound channel
LAN 1* Realtek 8111E,101001000M, support PXE
Storage Interface 1* Notebook SATA 3Gbs with power
Expansion Slots 1*MINI PCI-E slot for SSD, 1*Mini PCIE for wifi
USB 6*USB 2.0(4 pcs on the back panel,2 pcs via the USB brackets connected to the internal USB headers)
Internal
IO Connectors 1 x F_PA NEL header
1 x CPU_ FAN header
1 x SYS_FA N connector
1 x Front Audio header
1 x USB 2.0 header
2 x COM headers
1 x VGA header
1 x SATA header with Power
2 x MINI_PCIE connectors
1 x SPEA KER header
1 x CLR_ CMOS header
1 x IR header
Back Panel
Connectors 1 x DC power supply port (Support 12V-24V wide Voltage range)
1 x HDMI port
1 x DP port
1 x R J45 port
1 x AUDIO connector（2x Jacks）
4 x U SB connector
IO Controller 1 x IT8782F-S
BIOS AMI Authorized 8Mbit BIOS, support RPLPXE non-disk system
Form Factor Mini-ITX 120*120mm
Work Environment
Work Temperature  -15~55°C
Work Humidity   10%~80% of relative humidity, non-congealable.
Apply Range   ATM, Kiosk, Digital Signage or Living Room PC
