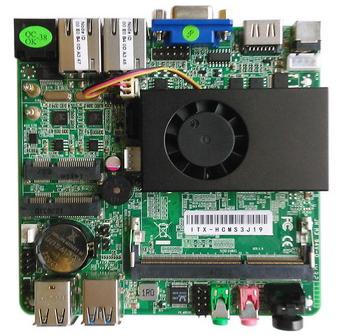

Nano Itx Industrial Motherboard

We offer 2032-1&2 itx-hcms3j19 & hcms3j18,nano itx industrial motherboard. Cpu intel rj1900 j18002.0ghz low consumption processor
chipset single chip: intel rj1900 j1800
memory 1 x sodimm ddr3 13331066mhz dimm, max support 8gb
graphics support directx 9.0c
audio onboard realtek alc662 hd audio chip
lan onboard realtek 8111e, 101001000m lan support pxe.
Storage interface 1 x sata2.0 hard disk connector
expansion slots 2x mini pcie slots
usb support 2 pcs usb 2.0 porst &2 pcs usb 3.0 porst
internal
io connectors 1x sata headers
1 x cpu fan header
1 x front panel header
1 x f_audio header
1 x clear cmos header
1 x vga_h header
1x pw_in
back panel
connectors 1 x vga port
1 xhdmi port
2 x usb 2.0 ports
2 x usb 3.0 ports
2 x rj-45 ports
1x dc port
2x line out&mic ports
1x rj45-com port
io controller 1 x it8772f
bios ami authorized 32mbit bios process, support rplpxe
form factor 120 x 120mm
work environmental
working conditional temperature -20~60°c
working conditional humidity 10%~80% relative humidity, non-condensing
products using range atm, kiosk, digital signage and living room pc
